C-PILLAR TRIM REMOVAL/INSTALLATION

id091700802200

4SD

1.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

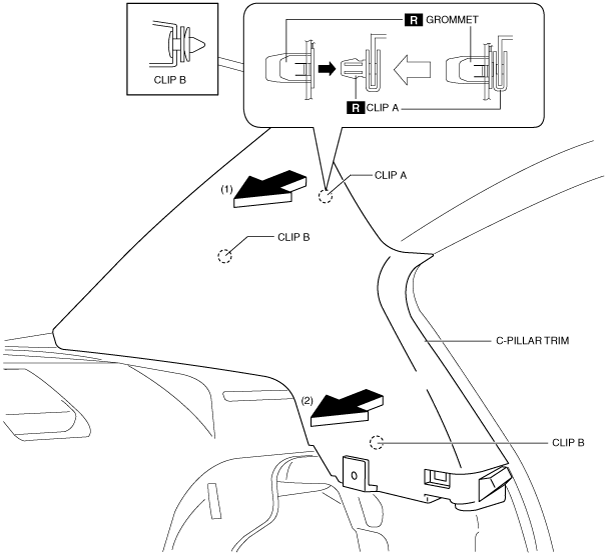

3.  Pull the C-pillar trim in the direction of the arrow (1), (2) shown in the figure, then detaching clip A and B.

am3uuw00004778

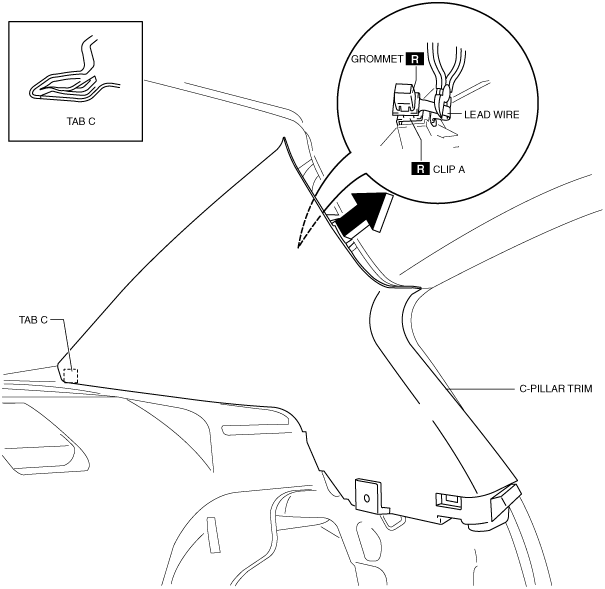

4.  Cut the lead wire connecting clip A and grommet using a nipper and pull out the C-pillar trim in the direction of the arrow shown in the figure, while remove the tab C.

am3uuw00004779

Caution

•  When removing the C-pillar trim, be careful not to damage the tab C.

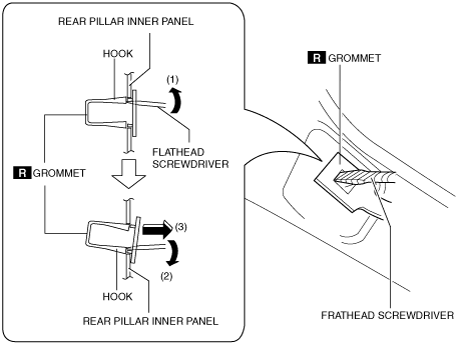

5.  Move the hook in the direction of arrows (1) and (2) shown in the figure using a flathead screwdriver and detach it from the rear pillar inner panel.

am6zzw00004285

6.  Remove the grommet in the direction of the arrow (3) shown in the figure.

7.  When installing the C-pillar, install the new clip A and grommet to the C-pillar trim in advance.

8.  Install in the reverse order of removal.

5HB

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

3.  Remove the fastener.

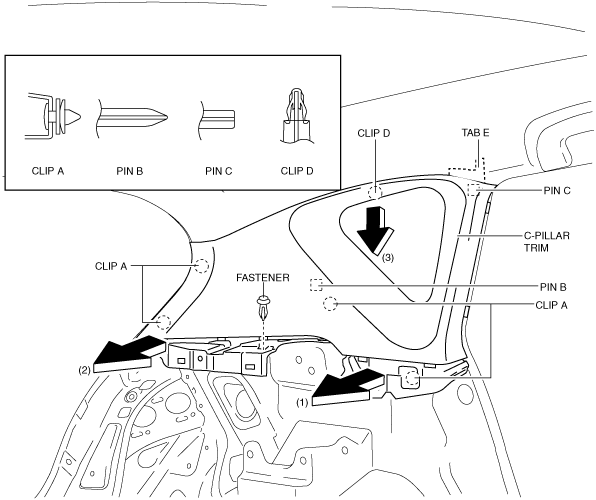

4.  Pull the C-pillar trim in the direction of the arrow (1), (2) shown in the figure, then remove the clips A, pin B and C.

5.  Pull the C-pillar trim in the direction of the arrow (3) shown in the figure, then remove the clips D and tab E.

am3uuw00005178

6.  Remove the C-pillar trim.

7.  Install in the reverse order of removal.
