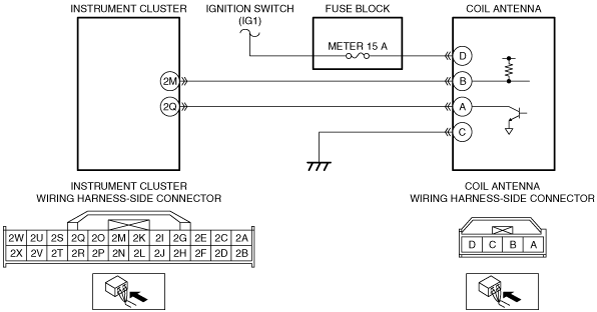

1
|
INSPECT COIL ANTENNA CONNECTOR AND TERMINALS
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Disconnect the coil antenna connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 8.
|
|
No
|
Go to the next step.
|
|
2
|
INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT OR SHORT TO GROUND
• Coil antenna connector is disconnected.
• Reconnect the negative battery cable.
• Switch the ignition to ON (engine off).
• Measure the voltage at the following terminal (wiring harness-side):
-
― Coil antenna terminal D
• Is the voltage 8 V or more?
|
Yes
|
Go to the next step.
|
|
No
|
Inspect the METER 15 A fuse.
• If the fuse is melt:
-
― Repair or replace the wiring harness for a possible short to ground.
― Replace the fuse.
• If the fuse is deterioration:
-
― Replace the fuse.
• If the fuse is normal:
-
― Repair or replace the wiring harness for a possible open circuit.
Go to Step 8.
|
|
3
|
INSPECT COIL ANTENNA GROUND CIRCUIT FOR OPEN CIRCUIT
• Coil antenna connector is disconnected.
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Inspect for continuity between the following terminal (wiring harness-side) and body ground:
-
― Coil antenna terminal C
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 8.
|
|
4
|
INSPECT INSTRUMENT CLUSTER CONNECTOR AND TERMINALS
• Disconnect the instrument cluster connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 8.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT COIL ANTENNA COMMUNICATION CIRCUIT FOR SHORT TO GROUND
• Coil antenna and instrument cluster connectors are disconnected.
• Inspect for continuity between the following terminals (wiring harness-side) and body ground:
-
― Coil antenna terminal B
― Coil antenna terminal A
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to ground, then go to Step 8.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT COIL ANTENNA COMMUNICATION CIRCUIT FOR OPEN CIRCUIT
• Coil antenna and instrument cluster connectors are disconnected.
• Inspect for continuity between the following terminals (wiring harness-side):
-
― Coil antenna terminal B—Instrument cluster terminal 2M
― Coil antenna terminal A—Instrument cluster terminal 2Q
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 8.
|
|
7
|
VERIFY COIL ANTENNA MALFUNCTION
• Make sure to reconnect the disconnected connectors.
• Reconnect the negative battery cable.
• Clear the DTC from the instrument cluster and PCM using the M-MDS.
• Perform the immobilizer system DTC inspection using the M-MDS.
• Is the same DTC present?
|
Yes
|
Replace the coil antenna, then go to the next step.
|
|
No
|
Go to Step 9.
|
|
8
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect the disconnected connectors.
• Reconnect the negative battery cable.
• Clear the DTC from the instrument cluster and PCM using the M-MDS.
• Perform the immobilizer system DTC inspection using the M-MDS.
• Is the same DTC present?
|
Yes
|
Replace the instrument cluster, then go to the next step.
|
|
No
|
Go to the next step.
|
|
9
|
VERIFY THAT NO OTHER DTCs ARE PRESENT
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
