DTC B109F:86 [BCM]

id0902f5412700

DESCRIPTION

Erratic signal from intruder sensor
DETECTION CONDITION
•  BCM receives erratic signal from intruder sensor for 2.5 s or more.
POSSIBLE CAUSE
•  Intruder sensor connector or terminals malfunction
•  BCM connector or terminals malfunction

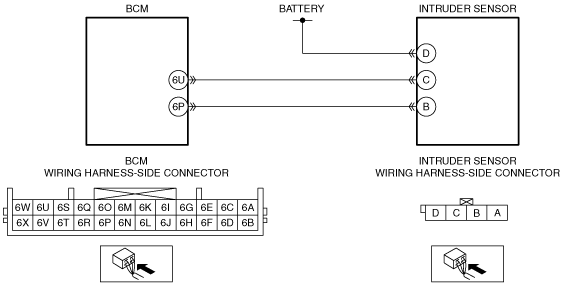

•  Short to ground in wiring harness between the following terminals:
―  Intruder sensor terminal C—BCM terminal 6U
•  Short to power supply in wiring harness between the following terminals:
―  Intruder sensor terminal C—BCM terminal 6U
•  Intruder sensor malfunction
•  BCM malfunction

Diagnostic Procedure

STEP

INSPECTION

ACTION
1
CONFIRM BCM DTC
•  Clear the DTC using the M-MDS.
•  Switch the ignition to ON and wait for 2.5 s or more.
•  Perform the BCM DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Go to the next step.
No
Go to Step 8.
2
INSPECT INTRUDER SENSOR CONNECTOR AND TERMINALS
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the intruder sensor connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 7.
No
Go to the next step.
3
INSPECT BCM CONNECTOR AND TERMINALS
•  Disconnect the BCM connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 7.
No
Go to the next step.
4
INSPECT INTRUDER SENSOR CIRCUIT FOR SHORT TO GROUND
•  Intruder sensor and BCM connectors are disconnected.
•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:
―  Intruder sensor terminal C
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 7.
No
Go to the next step.
5
INSPECT INTRUDER SENSOR CIRCUIT FOR SHORT TO POWER SUPPLY
•  Intruder sensor and BCM connectors are disconnected.
•  Reconnect the negative battery cable.
•  Switch the ignition to ON.
•  Measure the voltage at the following terminals (wiring harness-side):
―  Intruder sensor terminal C
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
No
Go to the next step.
6
INSPECT INTRUDER SENSOR
•  Inspect the intruder sensor.
•  Is there any malfunction?
Yes
Replace the intruder sensor, then go to the next step.
(See INTRUDER SENSOR REMOVAL/INSTALLATION.)
No
Go to the next step.
7
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect the disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC using the M-MDS.
•  Switch the ignition to ON and wait for 2.5 s or more.
•  Perform the BCM DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Replace the BCM, then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [L.H.D.].)
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [R.H.D.].)
No
Go to the next step.
8
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [BCM].)
No
DTC troubleshooting completed.
