DTC B1174:11 [BCM]


id0902f5931200

DESCRIPTION

Door lock-link switch (passenger-side/LR/RR) circuit malfunction

DETECTION CONDITION
•  Short to ground in the door lock-link switch (passenger-side/LR/RR) circuit with the door lock-link switch (passenger-side/LR/RR) unlocked.
POSSIBLE CAUSE
•  Front door latch and lock actuator (passenger-side) connector or terminals malfunction
•  Door lock-link switch (passenger-side) malfunction
•  Rear door latch and lock actuator (LH) connector or terminals malfunction
•  Door lock-link switch (LR) malfunction
•  Rear door latch and lock actuator (RH) connector or terminals malfunction
•  Door lock-link switch (RR) malfunction
•  BCM connector or terminals malfunction

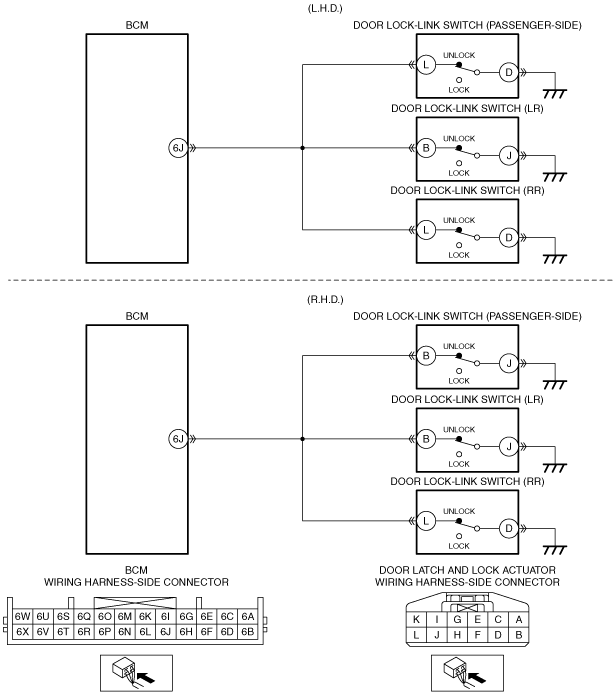

•  Short to ground in wiring harness between the following terminals:
―  L.H.D.:
•  Front door latch and lock actuator (passenger-side) terminal L/Rear door latch and lock actuator (LH) terminal B/Rear door latch and lock actuator (RH) terminal L—BCM terminal 6J
―  R.H.D.:
•  Front door latch and lock actuator (passenger-side) terminal B/Rear door latch and lock actuator (LH) terminal B/Rear door latch and lock actuator (RH) terminal L—BCM terminal 6J
•  BCM malfunction

Diagnostic Procedure

STEP

INSPECTION

ACTION

1
CONFIRM BCM DTC
•  Clear the DTC using the M-MDS.
•  Perform the BCM DTC inspection using the M-MDS with the door lock-link switch (passenger-side/LR/RR) unlocked.
•  Is the same DTC present?
Yes
Go to the next step.
No
Go to Step 11.
2
INSPECT FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER-SIDE) CONNECTOR AND TERMINALS
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the front door latch and lock actuator (passenger-side) connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 10.
No
Go to the next step.
3
INSPECT DOOR LOCK-LINK SWITCH (PASSENGER-SIDE)
•  Inspect the door lock-link switch (passenger-side).
•  Is there any malfunction?
Yes
Replace the front door latch and lock actuator (passenger-side), then go to Step 10.
No
Go to the next step.
4
INSPECT REAR DOOR LATCH AND LOCK ACTUATOR (LH) CONNECTOR AND TERMINALS
•  Disconnect the rear door latch and lock actuator (LH) connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 10.
No
Go to the next step.
5
INSPECT DOOR LOCK-LINK SWITCH (LR)
•  Inspect the door lock-link switch (LR).
•  Is there any malfunction?
Yes
Replace the rear door latch and lock actuator (LH), then go to Step 10.
No
Go to the next step.
6
INSPECT REAR DOOR LATCH AND LOCK ACTUATOR (RH) CONNECTOR AND TERMINALS
•  Disconnect the rear door latch and lock actuator (RH) connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 10.
No
Go to the next step.
7
INSPECT DOOR LOCK-LINK SWITCH (RR)
•  Inspect the door lock-link switch (RR).
•  Is there any malfunction?
Yes
Replace the rear door latch and lock actuator (RH), then go to Step 10.
No
Go to the next step.
8
INSPECT BCM CONNECTOR AND TERMINALS
•  Disconnect the BCM connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 10.
No
Go to the next step.
9
INSPECT DOOR LOCK-LINK SWITCH (PASSENGER-SIDE/LR/RR) CIRCUIT FOR SHORT TO GROUND
•  Front door latch and lock actuator (passenger-side), rear door latch and lock actuator (LH), rear door latch and lock actuator (RH) and BCM connectors are disconnected.
•  Inspect for continuity between the following terminal (wiring harness-side) and body ground:
―  L.H.D.:
•  Front door latch and lock actuator (passenger-side) terminal L
―  R.H.D.:
•  Front door latch and lock actuator (passenger-side) terminal B
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to the next step.
No
Go to the next step.
10
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect the disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC using the M-MDS.
•  Perform the BCM DTC inspection using the M-MDS with the door lock-link switch (passenger-side/LR/RR) unlocked.
•  Is the same DTC present?
Yes
Replace the BCM, then go to the next step.
No
Go to the next step.
11
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
