DIAGNOSTIC ASSIST FUNCTION [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

id0902g8804500

Software Version Verification

2. Press the SEEK/TRACK switch to display the oldest error code of the error codes that have been recorded.

Note

• If an error code has not been recorded, No Err is displayed.

With RDS (radio data system)

am3zzw00007435

Without RDS (radio data system)

am3zzw00007436

3. Press the SEEK/TRACK switch (down).

4. Verify the software version.

am3uuw00003113

5. To stop the on-board diagnostic test mode, ignition is switched to off.

Connection Condition Verification

2. Press SEEK/TRACK switch (down) to display the software version.

With RDS (radio data system)

am3zzw00007435

Without RDS (radio data system)

am3zzw00007436

3. Press the SEEK/TRACK switch (down).

4. Verify the connected unit.

am3uuw00003114

5. To stop the on-board diagnostic test mode, ignition is switched to off.

Password Reset

1. Switch the ignition to ACC or ON.

2. Press the RPT/PRESET switch 2 while pressing the AUTO-M switch until the password reset verification beep sound is heard.

With RDS (radio data system)

am3zzw00006155

Without RDS (radio data system)

am3zzw00007437

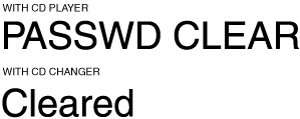

3. Verify that “PASSWD CLEAR” (with CD player) or “Cleared” (with CD changer) is displayed in the information display.

am3zzw00007629

4. To stop the diagnostic assist function, ignition is switched to off.
