REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

1.  Remove the License plate lights. (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.)

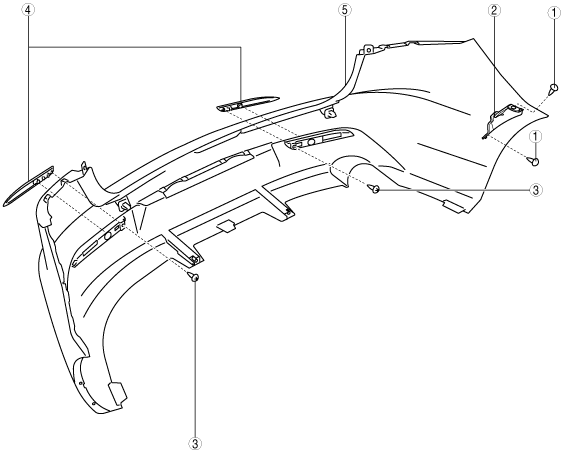

2.  Disassemble in the order indicated in the table.

am3uuw00005464

1	Fastener A
2	Bracket
3	Screw B
4	Reflector (See Reflector Removal Note)
5	Rear bumper fascia

3.  Assemble in the reverse order of disassembly.

Reflector Removal Note

1.  Remove the screws.

2.  Lift the reflector up in the direction of the arrow, then unhook it from the rear bumper.

am3uuw00005236
