REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION


id091000800900


Type A

1.  Disconnect the negative battery cable.

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION)

4.  Remove the nuts and remove the rear bumper reinforcement.

am3zzw00006426

5.  Install in the reverse order of removal.


Type B

1.  Disconnect the negative battery cable.

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION)

4.  Remove the nuts and remove the rear bumper reinforcement.

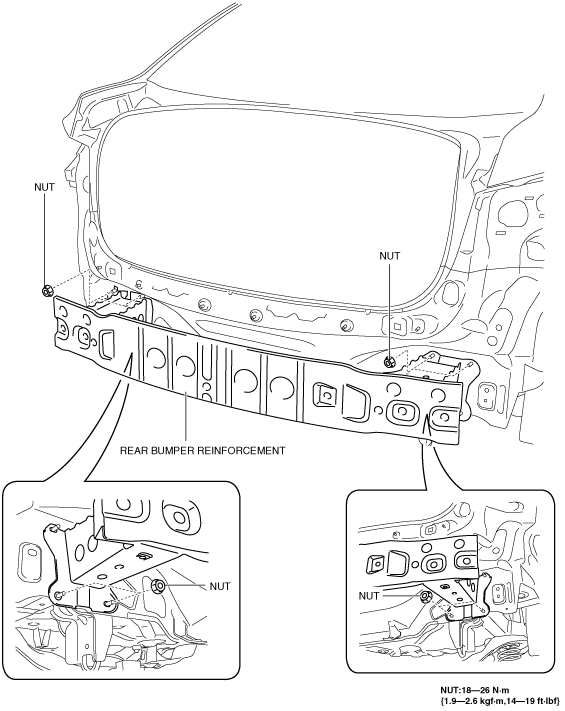

am3uuw00003908

5.  Install in the reverse order of removal.
