REAR COMBINATION LIGHT REMOVAL/INSTALLATION


id091800801000


4SD

1.  Disconnect the negative battery cable.

2.  Remove the trunk mat. (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

4.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

5.  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

6.  Disconnect the connectors shown in the figure and remove the nuts.

am3uuw00003202

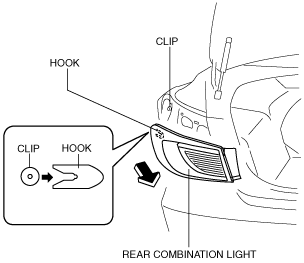

7.  Pull the rear combination light in the direction of the arrow to detach it from the hook.

am3uuw00005375

8.  Remove the rear combination light.

9.  Install in the reverse order of removal.


5HB

1.  Disconnect the negative battery cable.

2.  Remove the service hole cover.

am3uuw00005376

3.  Disconnect the connectors shown in the figure and remove the nuts.

am3uuw00005377

4.  Pull the rear combination light in the direction of the arrow to detach it from the hook.

am3uuw00005378

5.  Remove the rear combination light.

6.  Install in the reverse order of removal.
