FRONT DOOR HINGE REMOVAL/INSTALLATION
id091100520500
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)
- (2) Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
- (3) Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION.)
- (4) Side step molding (See SIDE STEP MOLDING REMOVAL.)
- (5) Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
- (6) Front door (See FRONT DOOR REMOVAL/INSTALLATION.)

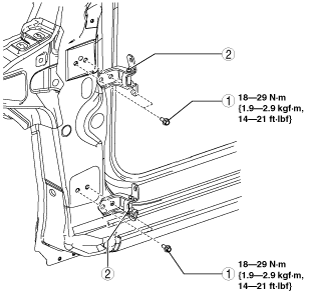

3. Remove in the order indicated in the table.
|
1
|
Bolt
|
|
2
|
Front door hinge
|
4. Install in the reverse order of removal.
