REAR DOOR MODULE PANEL REMOVAL/INSTALLATION

id091100520900

1.  Fully open the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(3)  Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(4)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

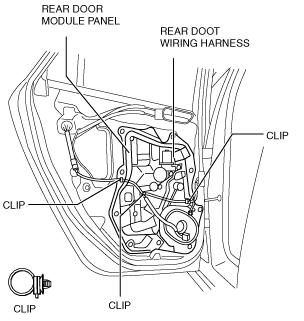

4.  Remove the clips securing the rear door wiring harness from the rear door module panel.

am3uuw00002589

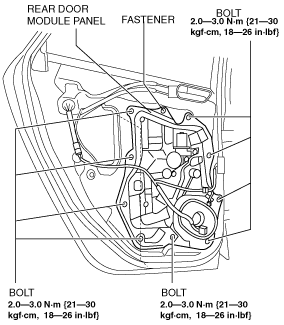

5.  Remove the bolts.

am3zzw00006939

6.  Remove the fastener.

7.  Remove the rear door module panel.

8.  Remove the rear power window motor. (Vehicles with rear power window)(See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

9.  Remove the rear power window regulator. (Vehicles with rear power window)(See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)

10.  Install in the reverse order of removal.
