POSITION MEMORY SWITCH INSPECTION

id091300811300

Warning

•  Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat (with built-in side air bag). (See AIR BAG SYSTEM SERVICE WARNINGS.)

Caution

•  After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

•  Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

1.  Remove the front seat side cover. (See FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITH POWER SEAT SYSTEM].)

2.  Disconnect the position memory switch connector.

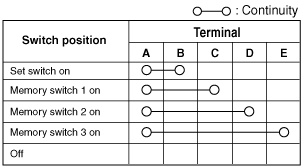

3.  Inspect for continuity between the power seat switch connector terminals.

am3uuw00003525

•  If not as specified, replace the position memory switch.

ac9uuw00002415
