REAR DOOR LATCH SWITCH INSPECTION

id091400511900

1.  Fully open the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Rear power window motor (Vehicles with rear power window)(See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

(5)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(6)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am2zzw00000688

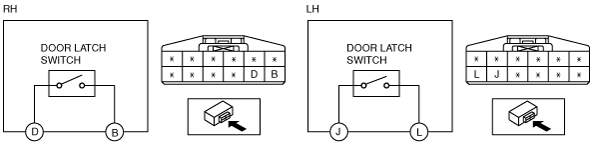

5.  Verify that the continuity is as indicated in the table.

am3uuw00004472

•  If not as indicated in the table, replace the rear door latch and lock actuator.

am3uuw00004541
