REAR DOOR LOCK ACTUATOR INSPECTION

id091400512000

1.  Fully open the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
(4)  Rear power window motor (Vehicles with rear power window)(See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)
(5)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)
(6)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

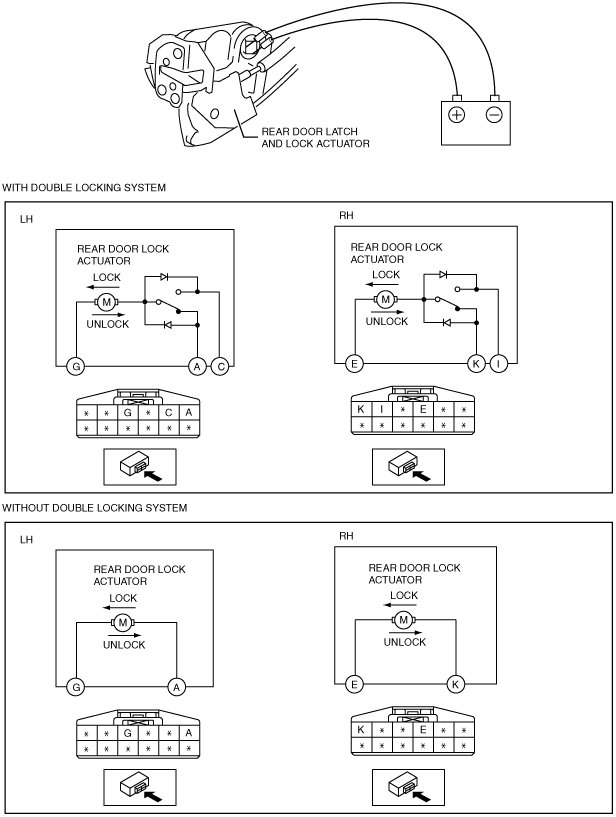

am3zzw00006167

•  If not as indicated in the table, replace the rear door latch and lock actuator.

With double locking system

Operation

Terminal

+

-
LOCK
RH
I
E
LH
C
G
DOUBLE LOCK
RH
K
E
LH
A
G
UNLOCK
RH
E
K, I
LH
G
A, C

Without double locking system

Operation

Terminal

+

-
LOCK
RH
K
E
LH
A
G
UNLOCK
RH
E
K
LH
G
A
