TRUNK LID RELEASE ACTUATOR INSPECTION

id091400513500

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Remove the trunk lid latch and release actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.)

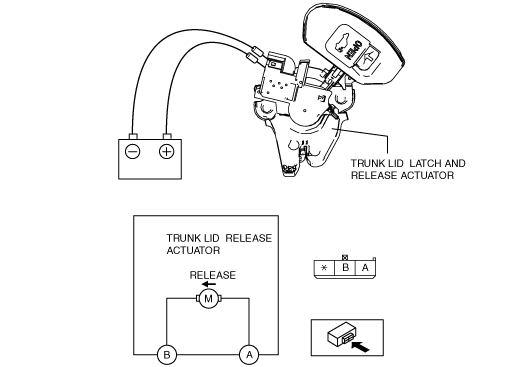

4.  Apply battery positive voltage to each terminal, and then verify the operation.

am3uuw00004545

•  If not as indicated in the table, replace the trunk lid latch and release actuator.

Release actuator operation	Terminal
	+	-
RELEASE	A	B
