KEYLESS RECEIVER INSPECTION [KEYLESS ENTRY SYSTEM]

id0914005144b3

L.H.D.

1. Remove the following parts:

(1) Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4) Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(5) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8) Console (See CONSOLE REMOVAL/INSTALLATION.)

2. Set the bonnet release lever out of the way. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

3. Remove the lower panel. (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

4. Remove the keyless receiver with the connector connected.

5. Measure the voltage according to the terminal voltage table.

• If the voltages cannot be verified as indicated in the terminal voltage table, inspect the parts under “Inspection item (s)”.

― If the system does not work normally even though the parts or related wiring harnesses do not have any malfunction, replace the keyless receiver.

6. Disconnect the negative battery cable.

Terminal Voltage Table (Reference)

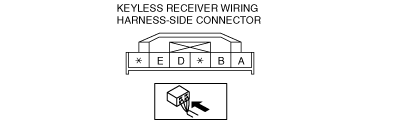

am3uuw00004340

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)/

Inspection item (s)

A

Power supply

ROOM 15 A fuse

Under any condition

B+

•  ROOM 15 A fuse

•  Battery

B

IG1

METER 15 A fuse

Switch the ignition to ON

B+

•  METER 15 A fuse

•  Battery

Switch the ignition to Off

1.0 or less

D

DATA

BCM

Terminal used for communication therefore determination based on terminal voltage inspection not possible.

BCM

E

GND

Body ground

Under any condition

1.0 or less

Ground

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)/	Inspection item (s)
A	Power supply	ROOM 15 A fuse	Under any condition	B+	• ROOM 15 A fuse • Battery
B	IG1	METER 15 A fuse	Switch the ignition to ON	B+	• METER 15 A fuse • Battery
Switch the ignition to Off	1.0 or less
D	DATA	BCM	Terminal used for communication therefore determination based on terminal voltage inspection not possible.	BCM
E	GND	Body ground	Under any condition	1.0 or less	Ground
