IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0914005147z3

Note
•  For a key that can start the engine, or no advanced key, the M-MDS can be used to force the ignition to switch to IG ON.

Foreword

•  When replacing immobilizer system-related parts or programming an additional key, program the immobilizer system-related parts so that the system operates normally. For immobilizer system-related parts programming, select the programming procedures according to the service. (See Selection of Procedure for Immobilizer System-Related Parts Programming.)
Caution
•  The engine cannot be started if any step or procedure for each service operation is skipped. Perform all procedures in the order of the steps.
•  If any metallic or magnetic object is near the key, communication between the key and the vehicle may be obstructed, resulting in a failure to program the immobilizer system-related parts. Remove any metallic or magnetic objects, such as key holders, from the key when programming immobilizer system-related parts.
•  If any of the following devices are inside the vehicle, programming of immobilizer system-related parts may fail. Do not bring any of the following devices or similar products inside the vehicle when programming immobilizer system-related parts.
―  Advanced key
―  M-MDS
―  Personal computer
―  Devices that can send/receive radio waves
•  If the engine is started during immobilizer system-related parts programming, the programming mode cancels. Therefore, do not start the engine unless indicated in the procedure. Repeat the procedure from the beginning if the engine is started during the immobilizer system-related parts programming.
•  If an advanced key is near the vehicle during immobilizer system-related parts programming, it may be programmed mistakenly. Keep advanced keys 1 m away from the vehicle unless indicated in the procedure.
Note
•  The “Valid key” or “Valid advanced key” referred to in this manual indicates the key that can start the engine.
•  Two or more key ID numbers must be programmed for the engine to start.
•  A maximum of eight key ID numbers can be programmed for one vehicle.
•  The number of programmed key ID numbers can be verified using the M-MDS.
•  Do not select any screen menu other than the ones indicated in the procedure during M-MDS operation.

Selection of Procedure for Immobilizer System-Related Parts Programming

1.  Verify that the ROOM fuse, EGI fuse, STEERING LOCK fuse are equipped.

2.  Select the applicable programming procedure from the service content of the immobilizer system-related parts.

Immobilizer System-Related Parts Service and Programming Procedure Table

No.

Service

Programming procedure
1
Additional key programming
Have one valid key or valid advanced key
(See No.1 Additional Key Programming Procedure (Using the M-MDS).)
2
Programming due to PCM replacement
(See No.2 Programming Procedure After PCM Replacement.)
3
Programming due to steering lock unit replacement
(See No.3 Programming Procedure After Steering Lock Unit Replacement.)
4
Programming due to keyless control module replacement
(See No.4 Programming Procedure After Keyless Control Module Replacement.)
5
Programming due to simultaneous replacement of immobilizer system-related parts
•  PCM
•  Keyless control module
•  Steering lock unit
(See No.5 Programming Procedure After Simultaneous Replacement of Immobilizer System-related Parts (PCM, Keyless Control Module, Steering Lock Unit, and Key).)
6
Key replacement
(See No.6 Replacing Only Key.)
7
Programming due to coil antenna replacement
Programming of immobilizer system-related parts is not necessary
8
Programming after keyless receiver replacement
Programming of immobilizer system-related parts is not necessary
9
Key Programming
There is no programmed key or programmed advanced key
(See No.7 Key Programming Procedure (If there is no programmed key or programmed advanced key).)


M-MDS Connecting Procedure

Note
•  Do not place the M-MDS in the vehicle while programming the immobilizer system.

1.  Fully lower the door glass.

2.  Connect the M-MDS to the DLC-2.

am3zzw00006172

3.  Place the M-MDS outside the vehicle.

Caution
•  Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.


No.1 Additional Key Programming Procedure (Using the M-MDS)

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Conditions
•  There is only one valid key.
Note
•  If a key ID number cannot be programmed, verify the number of programmed keys using the M-MDS.
•  If eight keys have already been programmed and it is necessary to program other keys, the previously programmed key ID numbers must first be cleared.

Procedure

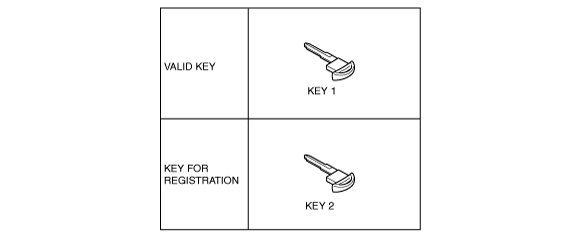

am3zzw00010011

STEP

Procedure

Action after procedure
1
VERIFY KEY 1 VALIDITY
1.  Start the engine using key 1.
Caution
•  Remove the advanced key from the vehicle.
2.  Verify that the security light illuminates for approx. 3 s, and then turns off.
3.  Switch the ignition off (LOCK).
Go to the next step.
2
PERFORM ADDITIONAL KEY PROGRAMMING
1.  Connect the M-MDS to the DLC-2.
2.  Insert key 1 into the key slot and depress the clutch (MTX)/brake (ATX) pedal.
Note
•  The keyless indicator light (green) illuminates for approx. 5 s and then turns off.
3.  Within 5 s after verifying that the keyless indicator light (green) illuminates, release the clutch (MTX)/brake (ATX) pedal and switch the ignition to off (LOCK)→ACC→ON.
4.  Remove key 1 from the key slot and insert key 2 into the key slot.
Note
•  After key 1 is removed, continue to perform the procedure as indicated even though the advanced key system warning alarm sounds and the keyless indicator light (red) starts to flash.
5.  After vehicle identification, select the following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS Functions”.
―  Using a PDS (pocket PC):
1.  Select “All Tests and Calibrations”.
2.  Select “PATS Functions”.
6.  Then, select the following from the screen menu.
Item
•  “Program Additional Ignition Key”
7.  Perform the security access according to the directions on the M-MDS screen.
Note
•  After executing the above menu, “This operation is successful” is displayed. At this stage, the programming for the key switching the ignition ON is completed.
•  If an additional key is to be programmed, continue to perform the procedure according to the directions on the M-MDS screen. To finish the key programming, go to the next step.
Yes
Change the key and repeat Step 2.
No
Go to the next step.
3
FINISH THE M-MDS
1.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
2.  Switch the ignition off (LOCK).
Go to the next step.
4
VERIFY THAT KEY IS PROGRAMMED
Verify that the engine can be started with the programmed key.
Note
•  When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.
Procedure is completed.


No.2 Programming Procedure After PCM Replacement

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Conditions
•  Prepare a valid key or an advanced key that can start the engine.

Procedure

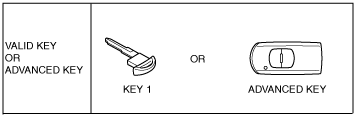

am2zzw00000559

STEP

Procedure

Action after procedure
1
REPLACE PCM
Refer to PCM removal/installation to perform PCM replacement and configuration.
(See PCM REMOVAL/INSTALLATION [LF, L5].)
(See PCM REMOVAL/INSTALLATION [ZY, Z6].)
(See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
(See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO5 emission level)].)
(See PCM REMOVAL/INSTALLATION [MZR-CD 2.2].)
(See PCM REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Insert a valid key into the key slot and depress the clutch (MTX)/brake (ATX) pedal.
Note
•  Although the security light remains illuminated and DTC 23 is displayed after approx. 1 min, continue to perform the procedure as indicated.
3.  The keyless indicator light (green) illuminates for approx. 5 s.
Note
•  When a valid advanced key is used, the keyless indicator light (green) illuminates.
4.  Within 5 s after verifying that the keyless indicator light (green) illuminates, release the clutch (MTX)/brake (ATX) pedal and switch the ignition ON.
Caution
•  When a valid advanced key is used, release the clutch (MTX)/brake (ATX) pedal and switch the ignition ON after verifying that the keyless indicator light (green) illuminates.
5.  After vehicle identification, select the following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS Functions”.
―  Using a PDS (pocket PC):
1.  Select “All Tests and Calibrations”.
2.  Select “PATS Functions”.
6.  Then, select the following from the screen menu.
Item
•  “Parameter Reset”
7.  Perform the security access according to the directions on the M-MDS screen.
8.  Select “PCM” from the replaced parts according to the directions on the M-MDS screen.
Caution
•  At this time, do not select the other parts from the M-MDS menu.
9.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
10.  Switch the ignition off (LOCK).
11.  Switch the ignition ON.
12.  Verify that the security light illuminates for approx. 3 s, and then turns off.
13.  Switch the ignition off (LOCK).
14.  Disconnect the M-MDS from the DLC-2.
Go to the next step.
3
VERIFY THAT KEY IS PROGRAMMED TO PCM
1.  Verify that the engine can be started with all the keys.
2.  Can the engine be started?
Yes
Procedure is completed.
No
Perform the corresponding DTC inspection to repair the malfunctioning part.


No.3 Programming Procedure After Steering Lock Unit Replacement

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Note
•  Since two or more keys need to be programmed to start the engine, program two or more keys after the replacement.
Conditions
•  Have two or more keys to be programmed after the replacement.

Procedure

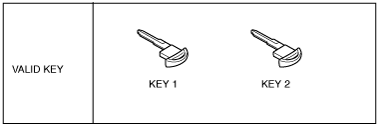

am3uuw00004512

STEP

Procedure

Action after procedure
1
REPLACE STEERING LOCK UNIT
Replace the steering lock unit.
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
Go to the next step.
2
CONNECT THE M-MDS
1.  Connect the M-MDS to the DLC-2.
2.  Remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON according to the directions on the M-MDS screen. Select, “There is no programmed ignition key and programmed advanced key” from the M-MDS screen.
Caution
•  The engine cannot be started if the ignition is switched ON by selecting “FORCED IGNITION ON”, however, this does not indicate a malfunction. Continue to perform the procedure as indicated.
•  Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
Go to the next step.
3
PROGRAM STEERING LOCK UNIT
1.  Select “Steering Lock Unit Programming” from the M-MDS screen menu.
2.  Bring the advanced keys into the vehicle.
3.  Complete the security access procedure and the steering lock unit programming according to the directions on the M-MDS screen.
4.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
5.  Switch the ignition off (LOCK).
6.  Disconnect the M-MDS from the DLC-2.
7.  Remove the programmed advanced keys from the vehicle.
Go to the next step.
4
SET UP IMMOBILIZER SYSTEM WITH KEY 1
Note
•  By starting the engine, the immobilizer system is set up and key programming is finished.
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 1.
Go to the next step.
5
VERIFY THAT KEY IS PROGRAMMED
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 2.
4.  Are there other keys to be programmed?
Yes
Repeat Step 5 using each programmed key.
No
Go to the next step.
6
VERIFY THAT ADVANCED KEY IS PROGRAMMED
1.  Bring the advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key slot and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  After verifying that the keyless warning light turns off, switch the ignition off (LOCK).
Procedure is completed.


No.4 Programming Procedure After Keyless Control Module Replacement

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Note
•  Before beginning the procedure, verify that the customer has turned in all of the advanced keys and keys for the vehicle.
•  The engine cannot be started unless an advanced key and two or more keys are programmed after the replacement.
Conditions
•  Have two or more keys to be programmed after the replacement.
•  Have one or more advanced keys to be programmed after the replacement.

Procedure

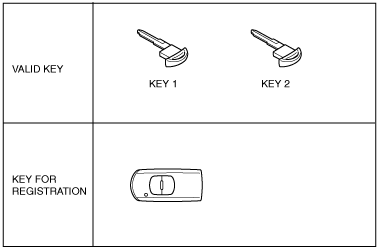

am3zzw00010012

STEP

Procedure

Action after procedure
1
REPLACE KEYLESS CONTROL MODULE
Refer to keyless control module removal/installation to perform keyless control module replacement and configuration.
(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION.)
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON according to the directions on the M-MDS screen. Select, “There is no programmed ignition key and programmed advanced key” from the M-MDS screen.
Caution
•  The engine cannot be started if the ignition is switched ON by selecting “FORCED IGNITION ON”, however, this does not indicate a malfunction. Continue to perform the procedure as indicated.
•  Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
Note
•  Although the security light flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
3.  After vehicle identification, select the following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS Functions”.
―  Using a PDS (pocket PC):
1.  Select “All Tests and Calibrations”.
2.  Select “PATS Functions”.
4.  Then, select the following from the screen menu.
Item
•  “Parameter Reset”
5.  Perform the security access according to the directions on the M-MDS screen.
6.  Select “RKE” from the replaced parts according to the directions on the M-MDS screen.
Caution
•  At this time, do not select the other parts from the M-MDS menu.
Go to the next step.
3
PERFORM IGNITION KEY ID NUMBER CLEARING
1.  Select “Ignition Key Code Erase and Program” from the M-MDS screen menu.
2.  Clear the ignition key ID number according to the directions on the M-MDS.
Go to the next step.
4
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
5
PERFORM ADVANCED KEY PROGRAMMING
1.  Select “Program Additional Advanced Key” from the M-MDS screen menu.
2.  Program the advanced key according to the directions on the M-MDS.
3.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
6
PERFORM STEERING LOCK UNIT PROGRAMMING
1.  Select “Steering Lock Unit Programming” from the M-MDS screen menu.
2.  Complete the steering lock unit programming according to the directions on the M-MDS.
3.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
4.  Switch the ignition off (LOCK).
5.  Disconnect the M-MDS from the DLC-2.
6.  Remove the programmed advanced key from the vehicle.
Go to the next step.
7
SET UP IMMOBILIZER SYSTEM WITH KEY 1
Note
•  By starting the engine, the immobilizer system is set up and key programming is finished.
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 1.
Go to the next step.
8
VERIFY THAT KEY IS PROGRAMMED
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 2.
4.  Are there other keys to be programmed?
Yes
Repeat Step 8 using each programmed key.
No
Go to the next step.
9
VERIFY THAT ADVANCED KEY IS PROGRAMMED
1.  Bring the advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key slot and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  After verifying that the keyless warning light turns off, switch the ignition off (LOCK).
Procedure is completed.


No.5 Programming Procedure After Simultaneous Replacement of Immobilizer System-related Parts (PCM, Keyless Control Module, Steering Lock Unit, and Key)

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Note
•  If the keyless control module is replaced, complete the configuration before performing the following menu.
•  If the PCM is replaced, complete the configuration before performing the following menu.
•  When replacing the keyless control module or the steering lock unit, remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON according to the directions on the M-MDS screen. Select, “There is no programmed ignition key and programmed advanced key” from the M-MDS screen.
Caution
•  The engine cannot be started if the ignition is switched ON by selecting “FORCED IGNITION ON”, however, this does not indicate a malfunction. Continue to perform the procedure as indicated.
•  Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
Caution
M-MDS menu
(1): Parameter Reset
(2): Ignition Key Code Erase and Program
(3): Program Additional Advanced Key
(4): Steering Lock Unit Programming

Replacement part

M-MDS execution menu/sequence

Conditions
Keyless control module and PCM
(1) → (2) → (3) → (4)
•  Have two or more keys to be programmed after the replacement.
•  Have one or more advanced keys to be programmed after the replacement.
Keyless control module and steering lock unit
Keyless control module, PCM, and steering lock unit
PCM and steering lock unit
(1) → (4)
Have two or more keys to be programmed after the replacement.


Procedure

am3zzw00010012

STEP

Procedure

Action after procedure
1
REPLACE UNIT OR PARTS
Replace the unit or parts.
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Switch the ignition off (LOCK) using key 1.
Note
•  Although the security light flashes or illuminates and DTC 15 or 23 is displayed after approx. 1 min, continue to perform the procedure.
3.  After vehicle identification, select the following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS Functions”.
―  Using a PDS (pocket PC):
1.  Select “All Tests and Calibrations”.
2.  Select “PATS Functions”.
4.  Then, select the following from the screen menu.
Item
•  “Parameter Reset”
5.  Perform the security access according to the directions on the M-MDS screen.
6.  Select the replaced part according to the directions on the M-MDS screen.
―  If the PCM is replaced: Select “PCM”.
―  If the keyless control module is replaced: Select“RKE”.
Caution
•  At this time, do not select the other parts from the M-MDS menu.
Go to the next step.
3
PERFORM IGNITION KEY ID NUMBER CLEARING
1.  Select “Ignition Key Code Erase and Program” from the M-MDS screen menu.
2.  Clear the ignition key ID number according to the directions on the M-MDS.
Go to the next step.
4
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
5
PERFORM ADVANCED KEY PROGRAMMING
1.  Select “Program Additional Advanced Key” from the M-MDS screen menu.
2.  Program the advanced key according to the directions on the M-MDS.
3.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
6
PERFORM STEERING LOCK UNIT PROGRAMMING
1.  Select “Steering Lock Unit Programming” from the M-MDS screen menu.
2.  Complete the steering lock unit programming according to the directions on the M-MDS.
3.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
4.  Switch the ignition off (LOCK).
5.  Disconnect the M-MDS from the DLC-2.
6.  Remove the programmed advanced key from the vehicle.
Go to the next step.
7
SET UP IMMOBILIZER SYSTEM WITH KEY 1
Note
•  By starting the engine, the immobilizer system is set up and key programming is finished.
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 1.
Go to the next step.
8
VERIFY THAT KEY IS PROGRAMMED
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 2.
4.  Are there other keys to be programmed?
Yes
Repeat Step 8 using each programmed key.
No
Go to the next step.
9
VERIFY THAT ADVANCED KEY IS PROGRAMMED
1.  Bring the programmed key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key slot and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  After verifying that the keyless warning light turns off, switch the ignition off (LOCK).
Procedure is completed.


No.6 Replacing Only Key

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Conditions
•  Have two or more keys to be programmed after the replacement.

Procedure

am3uuw00004512

STEP

Procedure

Action after procedure
1
REPLACE THE KEY
Replace the key.
Go to the next step.
2
PROGRAM/CLEAR AUXILIARY KEY
1.  Remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON according to the directions on the M-MDS screen. Select, “There is no programmed ignition key and programmed advanced key” from the M-MDS screen.
Caution
•  The engine cannot be started if the ignition is switched ON by selecting “FORCED IGNITION ON”, however, this does not indicate a malfunction. Continue to perform the procedure as indicated.
•  Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
2.  After vehicle identification, select the following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS Functions”.
―  Using a PDS (pocket PC):
1.  Select “All Tests and Calibrations”.
2.  Select “PATS Functions”.
3.  Perform the security access according to the directions on the M-MDS screen.
Go to the next step.
3
PERFORM IGNITION KEY ID NUMBER CLEARING
1.  Select “Ignition Key Code Erase and Program” from the M-MDS screen menu.
2.  Clear the ignition key ID number according to the directions on the M-MDS.
Go to the next step.
4
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
3.  Switch the ignition off (LOCK).
4.  Disconnect the M-MDS from the DLC-2.
Go to the next step.
5
ESTABLISH IMMOBILIZER SYSTEM WITH KEY 1
Note
•  By starting the engine, the immobilizer system is established and key programming is finished.
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 1.
Go to the next step.
6
VERIFY THAT KEY IS PROGRAMMED
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 2.
4.  Are there other keys to be programmed?
Yes
Change the key and repeat Step 6.
No
Go to the next step.
7
VERIFY THAT ADVANCED KEY IS PROGRAMMED
1.  Bring the advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key slot and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  After verifying that the keyless warning light turns off, switch the ignition off (LOCK).
Procedure is completed.


No.7 Key Programming Procedure (If there is no programmed key or programmed advanced key)

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Conditions

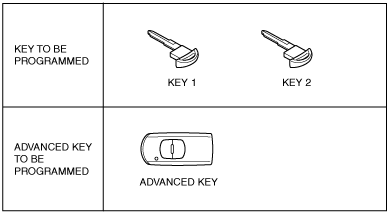

•  Have two or more keys to be programmed.
•  Have one or more advanced keys to be programmed.

Procedure

abarrw00002747

STEP

Procedure

Action after procedure
1
CLEARING AND PROGRAMMING ADVANCED KEY CODE
1.  Fully lower the driver-side door glass.
2.  Connect the M-MDS to the DLC-2.
3.  Set the M-MDS outside the vehicle with its cable passing through the door glass opening.
4.  After vehicle identification, select the following from the M-MDS initialization screen.
1.  “Body”
2.  “Security”
3.  “PATS (immobilizer) function”
5.  Next, select “Advanced Key Code Erase and Program” from the screen menu.
6.  Perform the security access according to the instructions on the M-MDS screen.
7.  Clear the advanced key according to the instructions on the M-MDS screen.
8.  Program the advanced key according to the instructions on the M-MDS screen.
Go to the next step.
2
PROGRAM/CLEAR AUXILIARY KEY
1.  Remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON according to the directions on the M-MDS screen. Select, “There is no programmed ignition key and programmed advanced key” from the M-MDS screen.
Caution
•  The engine cannot be started if the ignition is switched ON by selecting “FORCED IGNITION ON”, however, this does not indicate a malfunction. Continue to perform the procedure as indicated.
•  Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
2.  After the vehicle is identified, select the following items from the initialization screen of the IDS.
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS Functions”.
3.  Perform the security access according to the directions on the M-MDS screen.
Go to the next step.
3
PERFORM IGNITION KEY ID NUMBER CLEARING
1.  Select “Ignition Key Code Erase and Program” from the M-MDS screen menu.
2.  Clear the ignition key ID number according to the directions on the M-MDS.
Go to the next step.
4
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
3.  Switch the ignition off (LOCK).
4.  Disconnect the M-MDS from the DLC-2.
Go to the next step.
5
ESTABLISH IMMOBILIZER SYSTEM WITH KEY 1
Note
•  By starting the engine, the immobilizer system is established and key programming is finished.
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 1.
Go to the next step.
6
VERIFY THAT KEY IS PROGRAMMED
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 2.
4.  Are there other keys to be programmed?
Yes
Change the key and repeat Step 6.
No
Go to the next step.
7
VERIFY THAT ADVANCED KEY IS PROGRAMMED
1.  Bring the advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key slot and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  After verifying that the keyless warning light turns off, switch the ignition off (LOCK).
Procedure is completed.
