TRUNK LID OPENER LEVER REMOVAL/INSTALLATION

id091400620500

1.  Remove the front scuff plate (driver's side). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the front side trim (driver's side). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler lid opener bezel. (See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION.)

4.  Partially peel back the floor covering.

am3uuw00004371

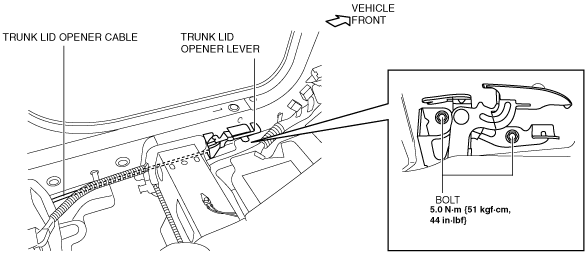

5.  Remove the bolts.

am3uuw00004142

6.  Disconnect the cable and trunk lid opener lever.

7.  Install in the reverse order of removal.
