EXTRACTOR CHAMBER REMOVAL/INSTALLATION

id091600801500

1.  Disconnect the negative battery cable.

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

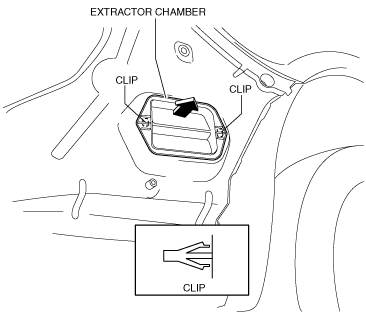

4.  Remove the clips.

am3uuw00003933

5.  Install in the reverse order of removal.
