LIFTGATE SIDE TRIM REMOVAL/INSTALLATION

id091700803700

1.  Remove the liftgate upper trim. (SeeLIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Pull the point A of the strap hanger as shown in the figure.

am3uuw00004886

3.  Remove the strap hanger.

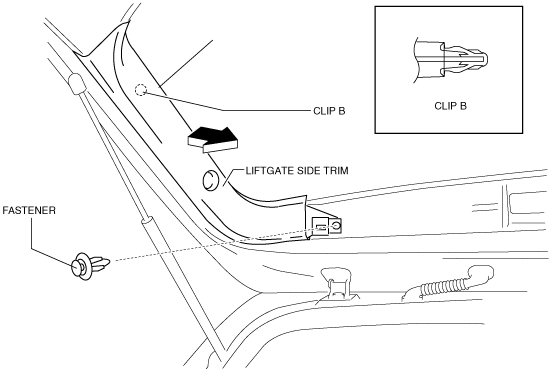

4.  Remove the fastener.

5.  Pull the liftgate side trim in the direction of arrow then remove clip B.

am3zzw00005873

6.  Detach tab C and D while pulling the liftgate side trim in the direction of the arrow (1) shown in the figure, then detach hook E while pulling in the direction of the arrow (2).

am3zzw00005874

7.  Install in the reverse order of removal.
