CENTER COVER REMOVAL/INSTALLATION

id091700989200

L.H.D.

1. Disconnect the negative battery cable.

2. Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION)

3. Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION)

4. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION)

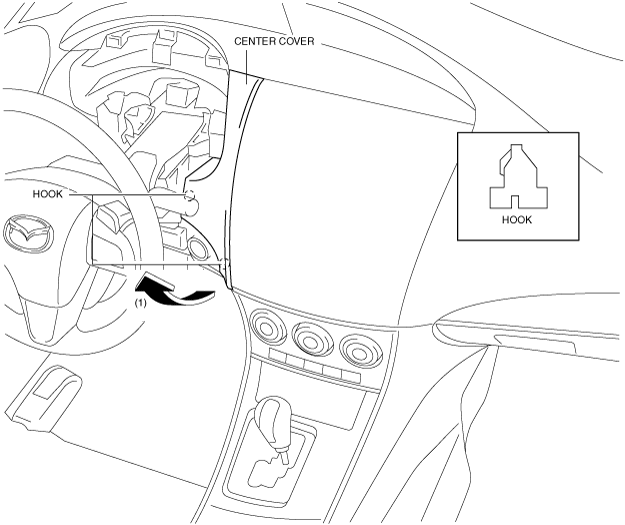

5. Pull the center cover in the direction of arrow (1) shown in the figure, then remove the hooks.

am3uuw00004636

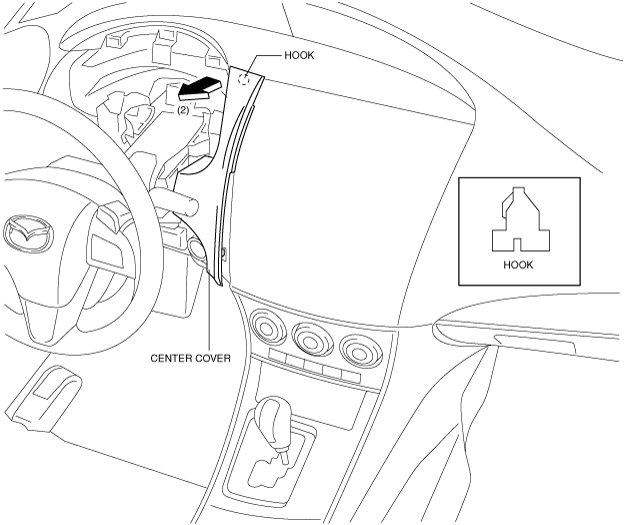

6. Pull the center cover in the direction of arrow (2) shown in the figure, then remove the hook.

am3uuw00004637

7. Remove the center cover.

8. Install in the reverse order of removal.

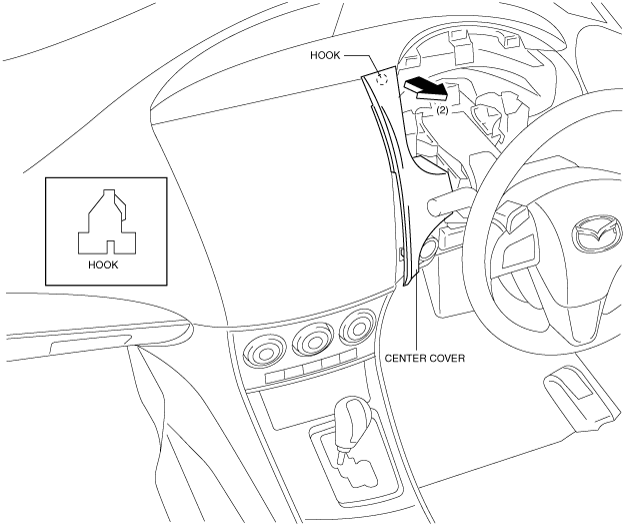

R.H.D.
