GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION
id091800801900
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (4) Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (5) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

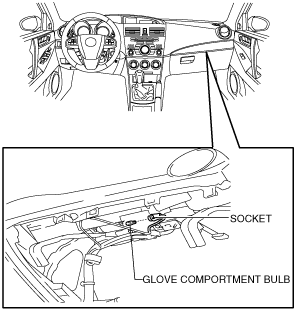

3. Remove in the glove comportment bulb.
4. Install in the reverse order of removal.
