WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900800300

Vehicles With Auto Wiper System

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the resistance and continuity between the windshield wiper and washer switch terminals as indicated in the table.

•  If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the windshield wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

am3zzw00007711

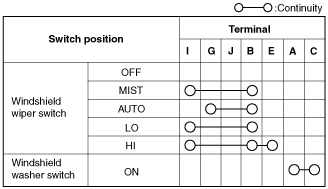

am3zzw00009845

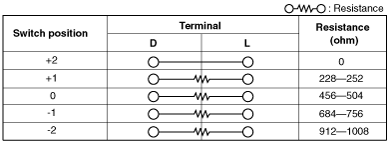

am3zzw00009743

Vehicles Without Auto Wiper System

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the resistance and continuity between the windshield wiper and washer switch terminals as indicated in the table.

•  If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the windshield wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

Vehicles with wiper and washer switch on right side

am3zzw00009744

am3zzw00009846

am3zzw00009745

Vehicles with wiper and washer switch on left side

am3zzw00007684

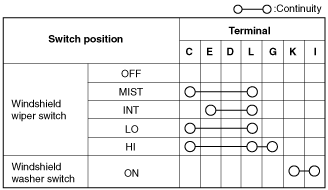

am3zzw00007685

am3zzw00007686
