AUXILIARY JACK REMOVAL/INSTALLATION

id092000809900

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(3)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(7)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

(8)  Console (See CONSOLE REMOVAL/INSTALLATION.)

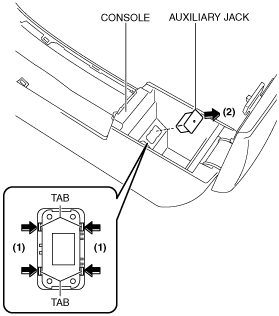

3.  Remove the auxiliary jack in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack tabs in the direction of the arrow (1).

am3uuw00002744

4.  Install in the reverse order of removal.
