REAR CENTER SPEAKER REMOVAL/INSTALLATION

id092000866800

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

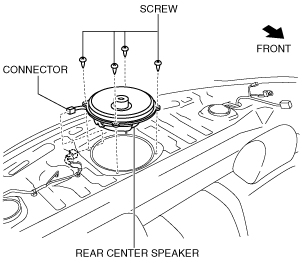

3.  Remove the screw.

am3uuw00002833

4.  Disconnect the connector.

5.  Remove the rear center speaker.

6.  Install in the reverse order of removal.
