ANTENNA FEEDER NO.7 REMOVAL/INSTALLATION

id092000888400

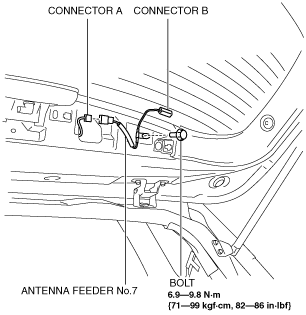

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector A.

am3zzw00005992

4.  Disconnect the connector B. (See Connector B Removal Note.)

5.  Remove the bolt.

6.  Remove the antenna feeder No.7.

7.  Install in the reverse order of removal.

Connector B Removal Note

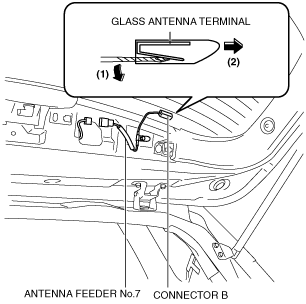

1.  Remove the connector B in the direction of the arrow (2) shown in the figure while pressing the glass antenna terminal in the direction of the arrow (1).

am3zzw00005993
