RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0921004926z5

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the lower panel.(Driver side) (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove the nut and clip.

am3zzw00006181

4.  Disconnect the connectors.

am3uuw00004433

5.  Remove the nut and clip.

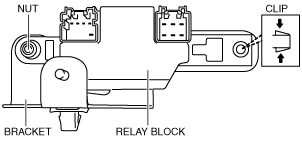

am3zzw00006435

6.  Remove the relay block from the bracket.

7.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the lower panel.(Passenger side) (See LOWER PANEL REMOVAL/INSTALLATION.)

4.  Remove the wiring harness clips.

am3zzw00006143

5.  Remove the nut and clip.

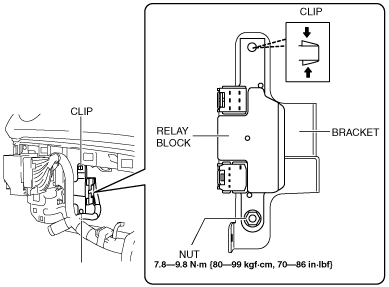

am3zzw00006156

6.  Disconnect the connectors.

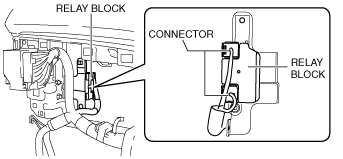

am3zzw00006145

7.  Remove the relay block from the bracket.

8.  Install in the reverse order of removal.
