PARKING SENSOR CONTROL MODULE INSPECTION

id092200775300

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Remove the lower panel. (Passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

•  If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under “Inspection item (s)”.

―  If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the parking sensor control module.

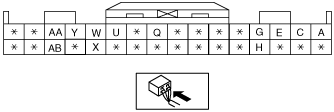

Terminal Voltage Table (Reference)

am3zzw00005941

Terminal	Signal name	Connected to	Measured item	Test condition		Voltage (V)	Inspection item
A	Ultrasonic sensor	Back sensor (left)	Wave profile	(See Generated Pulse (reference))			•  Back sensor (left) •  Related wiring harnesses
B	Terminal for measuring the buzzer terminal voltage (no auxiliary wiring harness to connect to the external devices)		Voltage	Switch the ignition to ON	Parking sensor switch ON and buzzer stopped	B+	Parking sensor control module
					Parking sensor switch ON and buzzer sounding	1.0 or less
C	Ultrasonic sensor	Back sensor (right)	Wave profile	(See Generated Pulse (reference))			•  Back sensor (right) •  Related wiring harnesses
D	—	—	—	—	—	—	—
E	Ultrasonic sensor	Corner sensor (left)	Wave profile	(See Generated Pulse (reference))			•  Corner sensor (left) •  Related wiring harnesses
F	—	—	—	—	—	—	—
G	Ultrasonic sensor	Corner sensor (right)	Wave profile	(See Generated Pulse (reference))			•  Corner sensor (right) •  Related wiring harnesses
H	GND	Corner/Back sensor	Voltage	Under any condition	Under any condition	1.0 or less	•  Corner sensor (right) •  Corner sensor (left) •  Back sensor (right) •  Back sensor (left) •  Related wiring harnesses
I	—	—	—	—	—	—	—
J	—	—	—	—	—	—	—
K	—	—	—	—	—	—	—
L	—	—	—	—	—	—	—
M	—	—	—	—	—	—	—
N	—	—	—	—	—	—	—
O	—	—	—	—	—	—	—
P	—	—	—	—	—	—	—
Q	Ultrasonic sensor ground	Body ground	Voltage	Under any condition	Under any condition	1.0 or less	Related wiring harnesses
R	—	—	—	—	—	—	—
S	—	—	—	—	—	—	—
T	—	—	—	—	—	—	—
U	IG	Parking sensor switch	Voltage	Switch the ignition to ON	Parking sensor switch ON	B+	•  Parking sensor switch •  Related wiring harnesses
					Parking sensor switch OFF	1.0 or less
V	—	—	—	—	—	—	—
W	R position	Back-up light switch	Voltage	Ignition switch ON and parking sensor switch ON	Shift lever is in R position	6.0 or more	•  Back-up light switch •  BCM •  Related wiring harnesses
					Shift lever is in position other than R	2.0 or less
X	—	—	—	—	—	—	—
Y	Vehicle speed	Instrument cluster	Wave profile	Rectangular wave pattern is displayed while driving	Speed signal is input: ON	6.0 or more	•  Instrument cluster •  Related wiring harnesses
					Speed signal is not input: OFF	Open or 5.0 or more
Z	—	—	—	—	—	—	—
AA	—	—	—	—	—	—	—
AB	Indicator	Parking sensor switch	Voltage	Switch the ignition to ON	Parking sensor switch is ON and parking sensor indicator light is not illuminated	B+	•  Parking sensor switch •  Related wiring harnesses
					Parking sensor switch is ON and parking sensor indicator light is illuminated	1.0 or less
					Parking sensor switch is OFF	1.0 or less
AC	—	—	—	—	—	—	—
AD	Trailer	Trailer switch	Voltage	Ignition switch ON and parking sensor switch ON	Trailer switch is ON	2.0 or less	•  Trailer switch •  Related wiring harnesses
					Trailer switch is OFF	5.0 or more
AE	—	—	—	—	—	—	—
AF	Tow-bar	Tow-bar switch	Voltage	Ignition switch ON and parking sensor switch ON	Tow-bar switch is ON	2.0 or less	•  Tow-bar switch •  Related wiring harnesses
					Tow-bar switch is OFF	5.0 or more

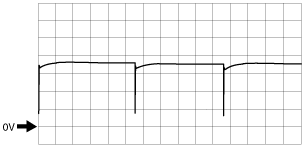

Generated Pulse (reference)

am5ezw00006521

―  Back sensor (LH): A (+) — body ground (-)

―  Back sensor (RH): C (+) — body ground (-)

―  Corner sensor (LH): E (+) — body ground (-)

―  Corner sensor (RH): G (+) — body ground (-)
