CRANKSHAFT END PLAY INSPECTION/REPAIR [WITH DIESEL PARTICULATE FILTER]

1. Install the main bearing cap. (See Main Bearing Cap Assembly Note)

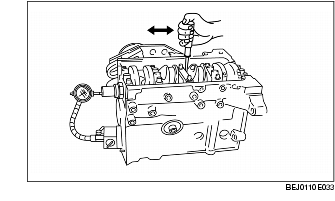

2. Measure the crankshaft end play. If the end play exceeds the maximum, replace the thrust bearing or grind the crankshaft, and install an undersize bearing so that the specified end play is obtained.

0.040-0.282 mm {0.00158-0.01110 in}

0.30 mm {0.012 in}

(mm {in})

Bearing size	Bearing thickness
Standard	2.00-2.05 {0.0788-0.0807}
0.35 {0.01} oversize	2.175-2.225 {0.0857-0.0876}

3. Remove the main bearing cap. (See Main Bearing Cap Disassembly Note)
