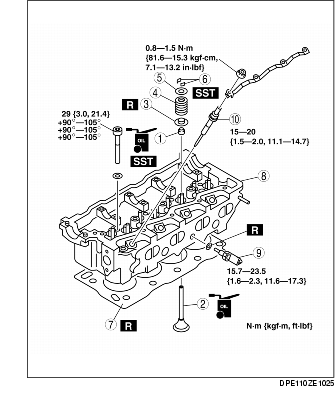

1. Assemble in the order indicated in the table.
|
1
|
Valve Seal
(See Valve Seal Assembly Note)
|
|
2
|
Valve
|
|
3
|
Lower valve spring seat
|
|
4
|
Valve spring
|
|
5
|
Upper valve spring seat
|
|
6
|
Valve keeper
|
|
7
|
Cylinder head gasket
|
|
8
|
Cylinder head
|
|
9
|
Engine coolant temperature sensor
|
|
10
|
Glow plug, Grow Plug Lead
|

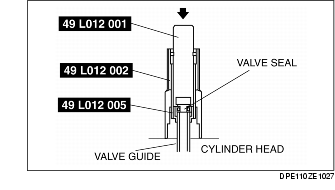

1. Assemble the SSTs so that depth L is as specified.
Depth L
2. Press the valve seal onto the valve guide by hand.
3. Tap the SSTs using a plastic hammer until its lower end touches the cylinder head.

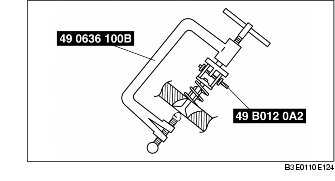

1. Install the valve keeper using the SSTs.
1. Tighten the bolts in two or three steps in the order shown.
Tightening torque

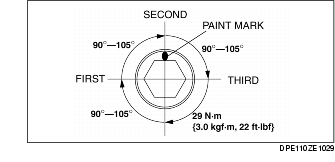

2. Put a paint mark on each bolt head.
3. Using the marks as a reference, tighten the bolts by turning each 90°-105° in the sequence shown.
4. Further tighten each bolt by turning another 90°-105°.
5. Further tighten each bolt by turning another 90°-105°.
