CYLINDER HEAD (II) DISASSEMBLY [WITHOUT DIESEL PARTICULATE FILTER]

id0110f4500500

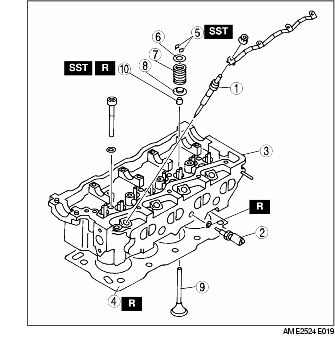

1. Disassemble in the order indicated in the table.


1	Glow plug, glow plug lead (See Glow Plug, Glow Plug Lead Disassembly Note)
2	Engine coolant temperature sensor
3	Cylinder head (See Cylinder Head Disassembly Note)
4	Cylinder head gasket
5	Valve keeper (See Valve Keeper Disassembly Note)
6	Upper valve spring seat
7	Valve spring
8	Lower valve spring seat
9	Valve
10	Valve seal (See Valve Seal Disassembly Note)

Glow Plug, Glow Plug Lead Disassembly Note

Caution

• Damaging heat-generating part of the plug can cause the plug to blow out. Do not use the plug if it is dropped from a height over 10 cm {3.9 in}.

• When removing the glow plug, loosen it one or more threads using tool, then further loosen by hand and remove it.

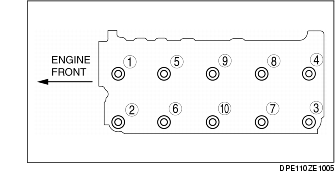

• Loosen the cylinder head bolts in two or three steps in the order shown.

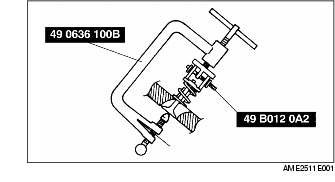

• Remove the valve keeper using the SSTs.

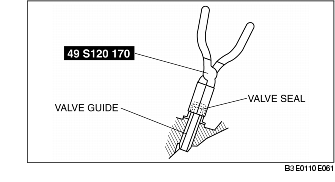

1. Remove the valve seal using the SST.
