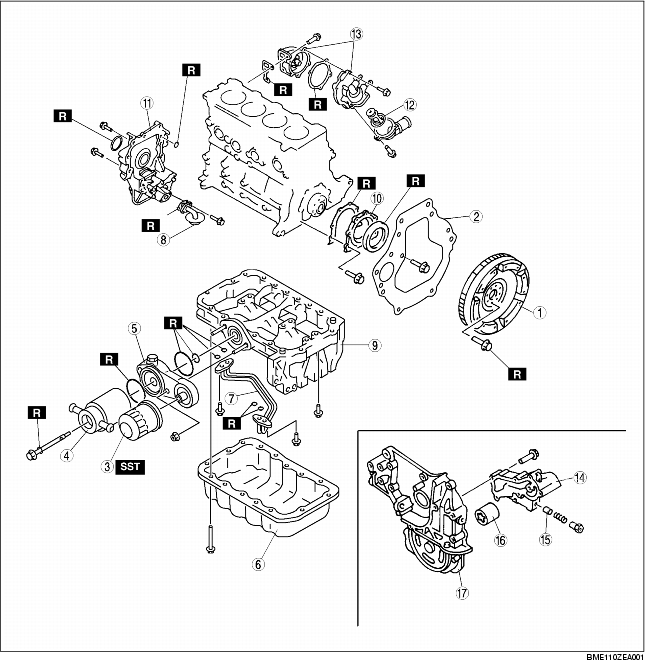

1. Disassemble in the order indicated in the table.
|
1
|
Flywheel
|
|
2
|
End plate
|
|
3
|
Oil filter
|
|
4
|
Oil cooler
|
|
5
|
Oil filter body
|
|
6
|
Oil pan
(See Oil Pan Disassembly Note)
|
|
7
|
Oil pipe
|
|
8
|
Oil strainer
|
|
9
|
Oil pan upper block
|
|
10
|
Rear cover
|
|
11
|
Oil pump
|
|
12
|
Thermostat
|
|
13
|
Water pump
|
|
14
|
Oil pump cover
|
|
15
|
Relief valve
|
|
16
|
Outer rotor
|
|
17
|
Oil pump body
|

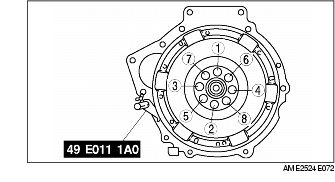

1. Hold the flywheel using the SST.
2. Loosen the bolts in two or three steps in the order shown.
1. Remove the oil pan mounting bolts.
2. Remove the sealant from the bolt threads.

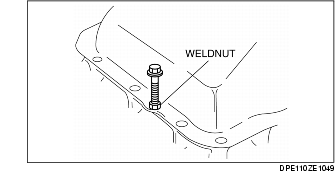

3. Screw an oil pan bolt into the weldnut to make a small gap between the cylinder block and the oil pan.
4. Remove the oil pan using the separator tool.
1. Loosen the oil pan upper block bolts in two or three steps in the order shown.
2. Remove the oil pan upper block

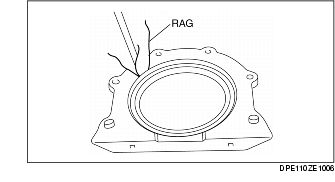

1. Remove the oil seal using a screwdriver protected with a rag.

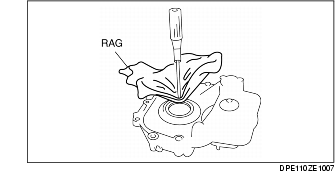

1. Remove the oil seal using a screwdriver protected with a rag.
