1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
|
1
|
Guide plate
|
|
2
|
Knock pin
|
|
3
|
Spring pin
(See Spring Pin Assembly Note.)
|
|
4
|
Shift lever shaft
|
|
5
|
Shift lever inner
|
|
6
|
Inter lock sleeve
|
|
7
|
Boot
|
|
8
|
Oil seal
|
|
9
|
Bearing
|
|
10
|
Breather plug
(See Breather Plug Assembly Note.)
|
|
11
|
Control case
|
|
12
|
Damper
|

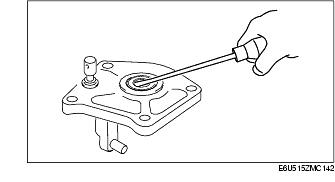

1. Remove the oil seal using a flathead screwdriver.
1. Remove the bearing using the SST.

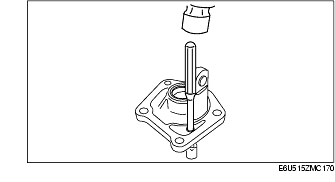

1. Remove the breather plug using a pin punch.

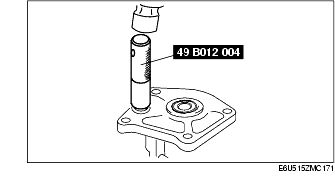

1. Install the breather plug using the SST.

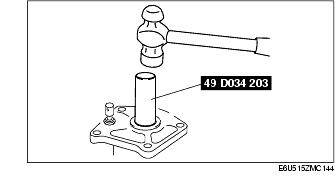

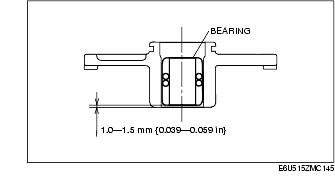

1. Install the bearing using the SST.

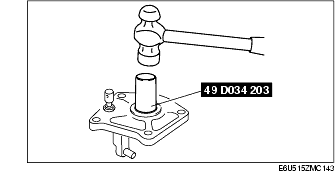

1. Install the oil seal using the SST.

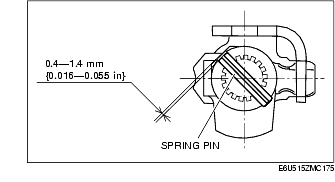

1. Tap in a new spring pin shown in the figure.
