SECONDARY SHAFT (NO.2) COMPONENTS DISASSEMBLY
D6E051517040109

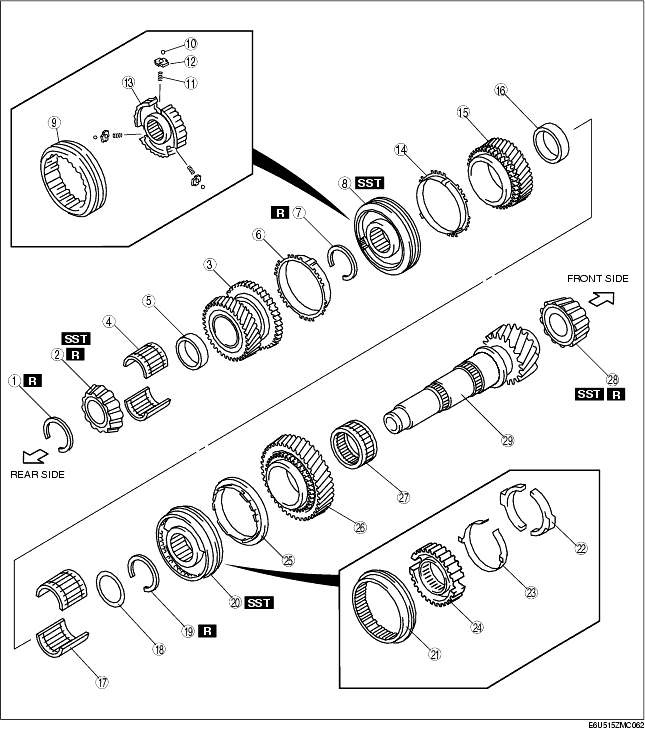

1. Disassemble in the order shown in the figure.
|
1
|
Snap ring
|
|
2
|
Rear bearing
|
|
3
|
6th gear
|
|
4
|
6th needle bearing
|
|
5
|
Spacer
|
|
6
|
6th synchronizer ring
|
|
7
|
Snap ring
|
|
8
|
5th/6th clutch hub component
|
|
9
|
Clutch hub sleeve
|
|
10
|
Steel ball
|
|
11
|
Spring
|
|
12
|
Synchronizer key
|
|
13
|
Clutch hub
|
|
14
|
5th synchronizer ring
|
|
15
|
5th gear
|
|
16
|
Spacer
|
|
17
|
5th needle bearing
|
|
18
|
Spacer
|
|
19
|
Snap ring
|
|
20
|
Reverse clutch hub component
|
|
21
|
Clutch hub sleeve
|
|
22
|
Synchronizer key
|
|
23
|
Spring
|
|
24
|
Clutch hub
|
|
25
|
Reverse synchronizer ring
|
|
26
|
Reverse gear
|
|
27
|
Reverse needle bearing
|
|
28
|
Front bearing
|
|
29
|
Secondary shaft (No.2)
|
Rear Bearing and 6th Gear Disassembly Note

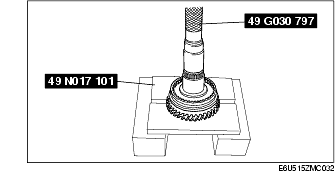

1. Using the SST and a press, remove the 6th gear and rear bearing at the same time.
5th Gear and 5th/6th Clutch Hub Disassembly Note

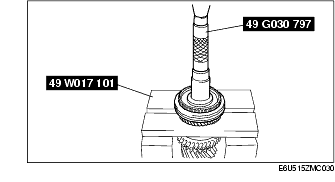

1. Using the SST and a press, remove the 5th gear and 5th/6th clutch hub at the same time.
Reverse Gear and Reverse Clutch Hub Disassembly Note

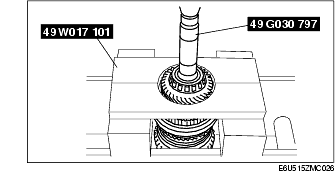

1. Using the SST and a press, remove the reverse gear and reverse clutch hub at the same time.
Front Bearing Disassembly Note

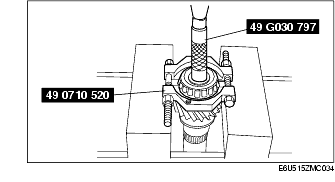

1. Using the SST and a press, remove the front bearing.
