DIFFERENTIAL ASSEMBLY

Caution

• Do not place the bearing (ring gear side) facing downward on a workbench after assembling the differential component. It may cause damage to the bearing roller guide.

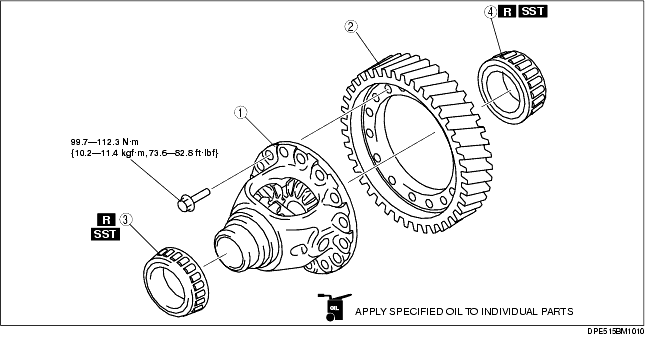

1. Assemble in the order shown in the figure.

Ring Gear Assembly Note

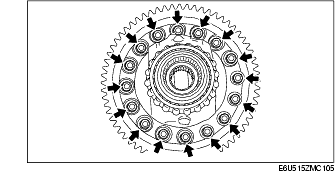

1. Assemble the gear case component and ring gear, and tighten the bolts in a criss-cross pattern in a few passes.

Tightening torque

99.7-112.3 N·m

{10.2-11.4 kgf·m, 73.6-82.8 ft·lbf}

Bearing (Ring Gear-Opposite Side) Assembly Note (Except L3 Turbo)

1. Install a new bearing using the SSTs and press.

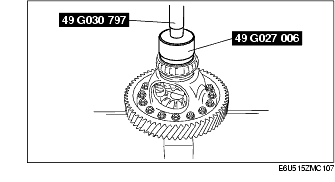

Bearing (Ring Gear-Opposite Side) Assembly Note (L3 Turbo)

1. Install a new bearing using the SSTs and press.

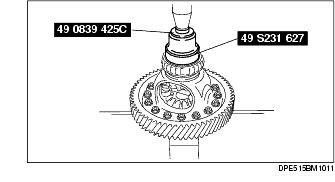

Bearing (Ring Gear Side) Assembly Note

1. Install a new bearing using the SSTs and press.
