REVERSE IDLER GEAR COMPONENTS DISASSEMBLY/ASSEMBLY

id051500810500

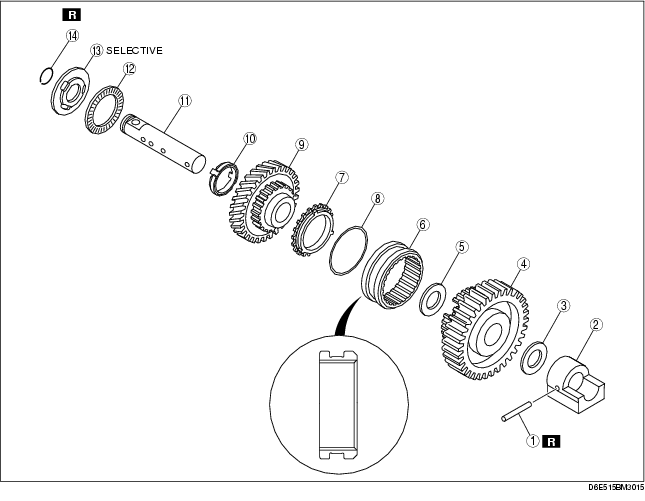

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.


1	Roll pin
2	Reverse idler gear support
3	Washer
4	Reverse idler gear
5	Washer
6	Reverse clutch hub sleeve
7	Synchronizer key spring
8	Reverse synchronizer ring
9	Reverse idler gear
10	Friction damper
11	Reverse idler gear shaft
12	Needle bearing
13	Thrust washer (See Thrust Washer Assembly Note.)
14	Clip

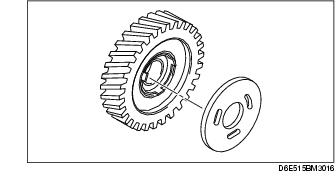

Thrust Washer Assembly Note

1. Align the tabs of the friction damper and thrust washer and assemble.

2. Measure the dimension A as shown in the figure.

• If not within the specification, select a suitable thrust washer from the table below so that the dimension is within the specification.

Reverse idler gear component dimension

57.0-57.5 mm {2.244-2.263 in}

Reverse thrust washer thickness (mm {in})

2.04 {0.080}

2.24 {0.088}

2.09 {0.082}

2.29 {0.090}

2.14 {0.084}

2.34 {0.092}

2.19 {0.086}

2.39 {0.094}
