PRIMARY GEAR DISASSEMBLY/ASSEMBLY
D6E051719204A02
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
1
Bearing
(See
Bearing Disassembly Note
.)
(See
Bearing Assembly Note
.)
2
Primary gear

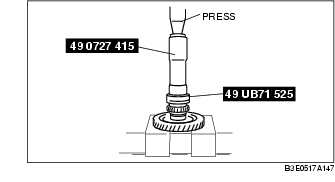

Bearing Disassembly Note
• Remove the bearing from the primary gear using the
SSTs
and suitable plate.
Bearing Assembly Note
• Install the bearing to the primary gear using the
SSTs
.
