DTC P0117 [L3 Turbo]
id0102b7804000
DTC P0117 |
ECT sensor circuit low input |
---|---|
DETECTION CONDITION
|
• The PCM monitors the ECT sensor signal. If the PCM detects the ECT sensor voltage is below 0.2 V, the PCM determines that the ECT sensor circuit has a malfunction.
Diagnostic support note
• This is a continuous monitor (Engine cooling system).
• The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
• FREEZE FRAME DATA is available.
• DTCs are stored in the PCM memory.
|
POSSIBLE CAUSE
|
• Engine overheating (Cooling system malfunction)
• ECT sensor malfunction
• Connect or terminal malfunction

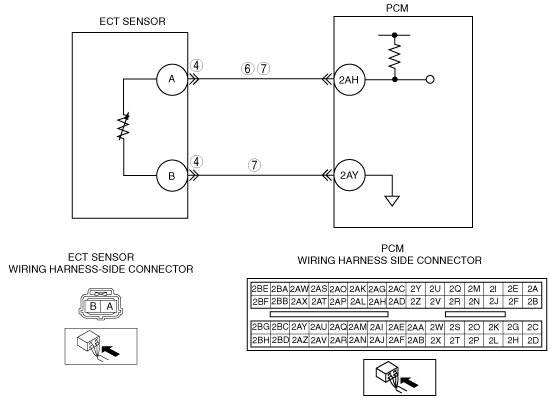

• Short to ground in the wiring harness between ECT sensor terminal A and PCM connector terminal 2AH
• Short to each wiring harness in ECT signal circuit and ECT ground circuit
• PCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform the repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
VERIFY ENGINE CONDITION
• Is the engine overheating?
|
Yes
|
Perform the symptom troubleshooting No.17 Cooling system concerns-Overheating procedure.
|
No
|
Go to the next step.
|
||
4
|
INSPECT FOR BENT TERMINALS
• Turn the ignition switch off.
• Disconnect the ECT sensor connector.
• Inspect ECT sensor terminals A and B (part-side) for bending.
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 8.
|
No
|
Go to the next step.
|
||
5
|
CLASSIFY ECT SENSOR MALFUNCTION OR WIRING HARNESS MALFUNCTION
• Connect the M-MDS to DLC-2.
• Access the ECT PID.
• Verify the ECT value when disconnecting the ECT sensor connector.
• Does the ECT value change?
|
Yes
|
Replace the ECT sensor, then go to Step 8.
|
No
|
Go to the next step.
|
||
6
|
INSPECT ECT SIGNAL CIRCUIT FOR SHORT TO GROUND
• Turn the ignition switch off.
• Inspect for continuity between ECT sensor terminal A (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a short to ground, then go to Step 8.
|
No
|
Go to the next step.
|
||
7
|
INSPECT ECT CIRCUIT FOR SHORT TO WIRING HARNESSES
• Inspect for continuity between ECT sensor terminal A and B (wiring harness-side).
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a short, then go to the next step.
|
No
|
Go to the next step.
|
||
8
|
VERIFY TROUBLESHOOTING OF DTC P0117 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Start the engine.
• Is the same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC troubleshooting.
(See DTC TABLE [L3 Turbo].)
|
No
|
Troubleshooting completed.
|
