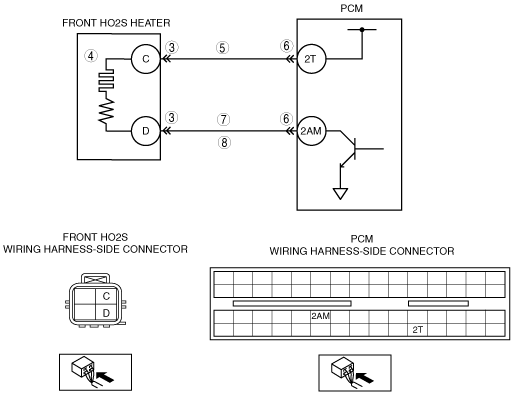

DTC P0031 [ZJ, ZY, Z6]

id0102c1802000


Without Throttle Valve Actuator

DTC P0031

Front HO2S heater control circuit low
DETECTION CONDITION
•  The PCM monitors front HO2S heater control voltage. If PCM turns front HO2S heater off but front HO2S heater circuit has low voltage, PCM determines that front HO2S heater circuit has malfunction.
Diagnostic support note
•  This is a continuous monitor (HO2S heater).
•  The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
•  PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  Front HO2S heater malfunction
•  Connector or terminal malfunction
•  Open circuit in wiring harness between front HO2S terminal C and PCM terminal 2T
•  Open circuit in wiring harness between front HO2S terminal D and PCM terminal 2AM
•  Short to ground in wiring harness between front HO2S terminal D and PCM terminal 2AM
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FRONT HO2S CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the front HO2S connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
4
INSPECT FRONT HO2S HEATER
•  Inspect the front HO2S heater.
•  Is there any malfunction?
Yes
Replace the front HO2S, then go to Step 9.
(See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
No
Go to the next step.
5
INSPECT FRONT HO2S HEATER POWER CIRCUIT FOR OPEN CIRCUIT
•  Turn the ignition switch off.
•  Disconnect the PCM connector.
•  Inspect for continuity between front HO2S terminal C (wiring harness-side) and PCM terminal 2T (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
6
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
7
INSPECT FRONT HO2S CIRCUIT FOR SHORT TO GROUND
•  Turn the ignition switch off.
•  Inspect for continuity between front HO2S terminal D (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 9.
No
Go to the next step.
8
INSPECT FRONT HO2S CIRCUIT FOR OPEN CIRCUIT
•  Turn the ignition switch off.
•  Inspect for continuity between front HO2S terminal D (wiring harness-side) and PCM terminal 2AM (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P0031 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the “HO2S heater, HO2S, and TWC Repair Verification Drive Mode”.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [ZJ, ZY, Z6].)
No
DTC troubleshooting completed.

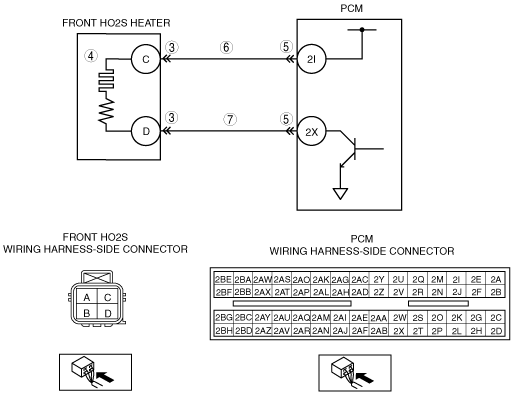

With Throttle Valve Actuator

DTC P0031

Front HO2S heater control circuit low
DETECTION CONDITION
•  The PCM monitors the front HO2S heater control voltage when the PCM turns the front HO2S heater off. If the control voltage exceeds 50 % of the battery voltage, the PCM determines that the front HO2S heater control circuit voltage is low.
Note
•  Front HO2S heater is controlled by duty signal.
Diagnostic support note
•  This is a continuous monitor (HO2S heater).
•  The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
•  PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  Front HO2S heater malfunction
•  Connector or terminal malfunction
•  Short to power supply in wiring harness between front HO2S terminal D and PCM terminal 2X
•  Short to ground in wiring harness between front HO2S heater terminal C and PCM terminal 2I
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FRONT HO2S CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the front HO2S connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
4
INSPECT FRONT HO2S HEATER
•  Inspect the front HO2S heater.
•  Is there any malfunction?
Yes
Replace the front HO2S, then go to Step 8.
(See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
No
Go to the next step.
5
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
6
INSPECT FRONT HO2S HEATER POWER CIRCUIT FOR SHORT TO GROUND
•  Turn the ignition switch off.
•  Inspect for continuity between the following terminals:
―  Front HO2S terminal C (wiring harness-side) and body ground
•  Is there continuity?
Yes
Repair or replace wiring harness for short to ground, then go to Step 8.
No
Go to the next step.
7
INSPECT FRONT HO2S HEATER CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the ignition switch to the ON position (Engine off).
•  Measure the voltage between front HO2S terminal D (wiring harness-side) and body ground.
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to the next step.
No
Go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P0031 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the “KOEO self-test”.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [ZJ, ZY, Z6].)
No
DTC troubleshooting completed.
