DTC P0108[ZJ, ZY, Z6]

id0102c1803500


With Throttle Valve Actuator Only

DTC P0108

MAP sensor circuit high input
DETECTION CONDITION
•  The PCM monitors the input voltage from the MAP sensor. If the input voltage is more than 4.8 V, the PCM determines that the MAP sensor circuit has a malfunction.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
•  The PENDING CODE is available if the PCM detects the above malfunction condition.
•  The FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  MAP sensor malfunction
•  Connector or terminal malfunction

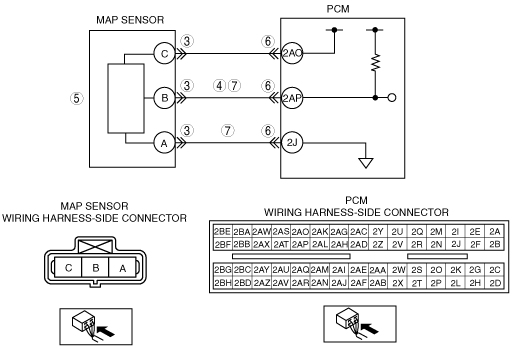

•  Open circuit in the wiring harness between MAP sensor terminal B and PCM terminal 2AP
•  Short to power supply in the wiring harness between MAP sensor terminal B and PCM terminal 2AP
•  Open circuit in the wiring harness between MAP sensor terminal A and PCM terminal 2J
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT MAP SENSOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the MAP sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
4
INSPECT MAP SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the ignition switch to the ON position (Engine off).
•  Measure the voltage between MAP sensor terminal B (wiring harness-side) and body ground.
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
No
Go to the next step.
5
INSPECT MAP SENSOR
•  Inspect the MAP sensor.
•  Is there any malfunction?
Yes
Replace the MAP sensor, then go to Step 8.
No
Go to the next step.
6
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
7
INSPECT MAP SENSOR CIRCUIT FOR OPEN CIRCUIT
•  Turn the ignition switch off.
•  Inspect for continuity between the following terminals:
―  MAP sensor terminal A (wiring harness-side) and PCM terminal 2J (wiring harness-side)
―  MAP sensor terminal B (wiring harness-side) and PCM terminal 2AP (wiring harness-side)
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P0108 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the “KOEO or KOER self-test”.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(SeePCM REMOVAL/INSTALLATION[ZJ, ZY, Z6].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE[ZJ, ZY, Z6].)
No
DTC troubleshooting completed.
