DTC P0132[ZJ, ZY, Z6]

id0102c1804700


Without Throttle Valve Actuator

DTC P0132

Front HO2S circuit high voltage
DETECTION CONDITION
•  The PCM monitors the input voltage from the front HO2S when the engine is running. If the input voltage is more than 1.2 V, the PCM determines that the front HO2S circuit voltage is high.
Diagnostic support note
•  This is a continuous monitor (HO2S).
•  The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
•  PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  Front HO2S malfunction
•  Connector or terminal malfunction

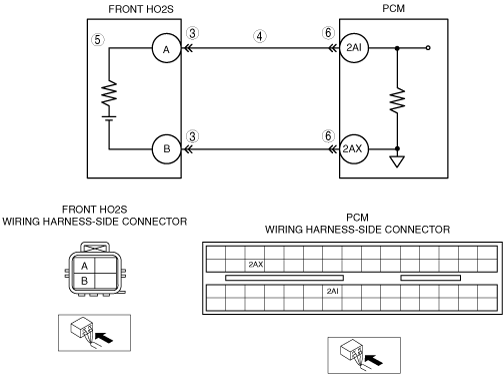

•  Short to power supply in wiring harness between front HO2S terminal A and PCM terminal 2AI
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FRONT HO2S CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the front HO2S connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 7.
No
Go to the next step.
4
INSPECT FRONT HO2S CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the ignition switch to the ON position (Engine off).
•  Measure the voltage between front HO2S terminal A (wiring harness-side) and body ground.
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
No
Go to the next step.
5
INSPECT FRONT HO2S
•  Inspect the front HO2S.
•  Is there any malfunction?
Yes
Replace the front HO2S, then go to Step 7.
(See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION[ZJ, ZY, Z6].)
No
Go to the next step.
6
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to the next step.
No
Go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P0132 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the “HO2S heater, HO2S, and TWC Repair Verification Drive Mode”.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION[ZJ, ZY, Z6].)
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE[ZJ, ZY, Z6].)
No
DTC troubleshooting completed.


With Throttle Valve Actuator

DTC P0132

Front HO2S circuit high input
DETECTION CONDITION
•  The PCM monitors the input signal from the front HO2S and the front HO2S output current when the engine is running. If the input signal is 3.8 V or more or output current is 5 mA or more, the PCM determines that the front HO2S circuit voltage is high.
Diagnostic support note
•  This is a continuous monitor (HO2S).
•  The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
•  PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  Front HO2S malfunction
•  Connector or terminal malfunction
•  Short to power supply in wiring harness between front HO2S terminal A and PCM terminal 2Z
•  Short to power supply in wiring harness between front HO2S terminal B and PCM terminal 2AD
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY RELATED PENDING CODE OR STORED DTC
•  Turn the ignition switch off, then the ON position (engine off).
•  Verify the pending code or stored DTCs using the M-MDS.
•  Is other DTC present?
Yes
Go to the appropriate DTC troubleshooting procedure.
(SeeDTC TABLE[ZJ, ZY, Z6].)
No
Go to the next step.
4
IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA
•  Is the DTC P0132 on FREEZE FRAME DATA?
Yes
Go to the next step.
No
Go to troubleshooting procedures for DTC on FREEZE FRAME DATA.
(SeeDTC TABLE[ZJ, ZY, Z6].)
5
INSPECT FRONT HO2S CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the front HO2S connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
6
INSPECT FRONT HO2S CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the ignition switch to the ON position (Engine off).
•  Measure the voltage between the following terminals and body ground.
―  Front HO2S terminal A (wiring harness-side)
―  Front HO2S terminal B (wiring harness-side)
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
No
Go to the next step.
7
INSPECT FRONT HO2S
•  Inspect the front HO2S.
•  Is there any malfunction?
Yes
Replace the front HO2S, then go to Step 9.
(See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION[ZJ, ZY, Z6].)
No
Go to the next step.
8
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to the next step.
No
Go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P0132 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the “KOEO or KOER self-test”.
•  Is the DTC P0132 present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION[ZJ, ZY, Z6].)
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE[ZJ, ZY, Z6].)
No
DTC troubleshooting completed.
