VALVE CLEARANCE ADJUSTMENT [LF, L3]

id0110a0803300

1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L3].)

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

3. Disconnect the negative battery cable.

4. Disconnect the wiring harness.

5. Disconnect the OCV connector.

6. Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)

7. Remove the engine under cover and splash shield (RH).

8. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [LF, L3].)

9. Remove the ventilation hose.

10. Remove the cylinder head cover.

11. Remove the engine front cover lower blind plug.

am5ezw00002395

12. Remove the engine front cover upper blind plug.

am5ezw00002396

13. Remove the cylinder block lower blind plug, and install the SST.

ampjjw00002884

14. Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at TDC of the compression stroke. (Until the counterweight contacts SST and stops.)

15. Loosen the timing chain using the following procedure.

(1) Insert a suitable bolt (M6 X 1.0, length 25—35 mm {0.99—1.3 in}) into the engine front cover upper blind plug and tighten it until it contacts the chain tensioner arm, and then rotate it back one turn. (Set the bolt slightly away from the chain tensioner arm so that it does not contact it.)

am3zzw00004789

(2) Using the cast hexagon on the exhaust camshaft, apply force counterclockwise to facilitate unlocking the chain tensioner ratchet.

am8rrw00002539

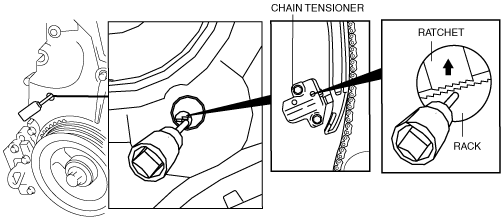

(3) Using a Hex bit socket (2.5 mm {0.098 in}) or T15 Torx bit socket, unlock the chain tensioner ratchet so that it can be lifted up.

am3zzw00004790

(4) Using the cast hexagon on the exhaust camshaft, apply force in the direction of the engine rotation to increase tension on the chain.

am8rrw00002541

Note

• The chain tensioner rack is compressed using the chain tension generated by applying force to the exhaust camshaft in the direction of the engine rotation.

beleue00000042

Note

• The ratchet has not been unlocked if the bolt cannot be pressed in approx. 5 mm {0.2 in}.

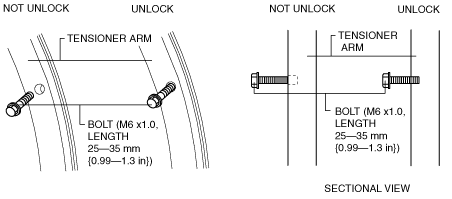

(5) Screw in the bolt set in Step 1 approx. 5 mm {0.2 in} and secure the tensioner arm with the rack compressed.

aprjjw00003610

• If the tensioner arm cannot be secured, return the bolt to its original position and repeat the procedure from Step 3.

16. Fix the exhaust camshaft using a wrench on the cast hexagon, and loosen the camshaft sprocket bolt.

acxuuw00000161

17. Remove the exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and washer (The washers may not be installed.) as a single unit.

Caution

• Perform the work carefully so that the washer does not drop out. (The washers may not be installed.)

Note

• The washers do not have to be installed on the LF-VE (ATX) (there is no problem with installing them).

• Be careful not to install a washer on only the IN or EX side.

am5ezw00006811

18. Remove the oil control valve (OCV). (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [LF, L3].)

Note

• The camshaft caps are to be kept ordered for correct reassembly in their original positions. Do not mix the caps.

19. Loosen the camshaft cap bolts in two or three passes in the order shown in the figure and remove the camshaft cap.

am3zzw00002425

20. Remove the camshafts for the intake and exhaust sides.

21. Remove the tappet.

22. Install an appropriate tappet based on the results of the valve clearance inspection.

Selected tappet = Removed tappet thickness + Measured valve clearance - Standard valve clearance

Standard [Engine cold]

IN: 0.22—0.28 mm {0.0087—0.0110 in}

EX: 0.27—0.33 mm {0.0107—0.0129 in}

23. Verify that the No.1 cylinder is at TDC of the compression stroke. (The position counter weight contacts the SST.)

24. Apply the gear oil (SAE No. 90 or equivalent) to each journal of the cylinder head as shown in the figure.

am3zzw00004590

25. Install the camshaft with No.1 cylinder aligned with the TDC position.

26. Apply the gear oil (SAE No. 90 or equivalent) to each journal of the camshaft as shown in the figure.

am3zzw00004591

27. Temporarily tighten the camshaft cap bolts evenly in 2—3 steps.

28. Tighten the camshaft cap bolts in the order shown in the following two steps.

am3zzw00002363

Tightening torque

1st step: 5.0—8.0 N·m {51.0—81.5 kgf·cm, 44.3—70.8 in·lbf}

2nd step: 14—17 N·m {1.43—1.73 kgf·m, 10.4—12.5 ft·lbf}

29. Install the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [LF, L3].)

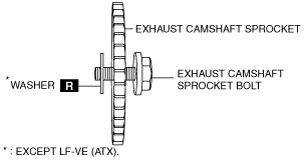

30. Install the exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and a new washer (Except LF-VE (ATX).) as a single unit.

Caution

• Install a washer to the fourth or fifth thread of the exhaust camshaft sprocket bolt being careful not to drop the washer. (Except LF-VE (ATX).)

• Do not tighten the camshaft sprocket bolt at this stage. Verify the valve timing before performing the bolt tightening.

Note

• The washers do not have to be installed on the LF-VE (ATX) (there is no problem with installing them).

• Be careful not to install a washer on only the IN or EX side.

― If the washers are not installed, do not install the washers to both the IN and EX sides.

― If the washers are to be installed, install them on both the IN and EX sides.

am5ezw00006812

31. Install the SST to the camshaft as shown in the figure.

am3zzw00002365

32. Remove the installation bolt for the engine front cover upper blind plug (M6 X 1.0 length 25—35mm {0.99—1.3 in}), and apply tension to the timing chain.

33. Rotate the crankshaft clockwise and verify that the No.1 cylinder is at TDC of the compression stroke. (The position counter weight contacts the SST.)

34. Fix the exhaust camshaft using a wrench on the cast hexagon, and tighten the sprocket bolt.

am8rrw00002546

Tightening torque

69—75 N·m {7.1—7.6 kgf·m, 50.9—55.3 ft·lbf}

35. Remove the SST from the camshaft.

36. Remove the SST installed in the cylinder block lower blind plug hole.

37. Rotate the crankshaft clockwise two turns and inspect the valve timing.

• If not aligned, loosen the camshaft sprocket bolt and repeat the procedure from Step 31.

38. Apply the silicone sealant and install the engine front cover upper blind plug.

am3zzw00005645

Tightening torque

8.0—11.5 N·m {82—117 kgf·cm, 71—101 in·lbf}

39. Install the cylinder block lower blind plug.

am5ezw00002393

Tightening torque

18—22 N·m {1.9—2.2 kgf·m, 13.3—16.2 ft·lbf}

40. Install a new engine front cover lower blind plug.

am5ezw00002395

Tightening torque

10—14 N·m {102—142 kgf·cm, 89—123 in·lbf}

41. Install the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [LF, L3].)

42. Install the Ventilation hose.

43. Install the Ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [LF, L3].)

44. Install the Engine under cover and splash shield (RH).

45. Install the Front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)

46. Connect the OCV connector.

47. Connect the wiring harness.

48. Connect the negative battery cable.

49. Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

50. Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L3].)
