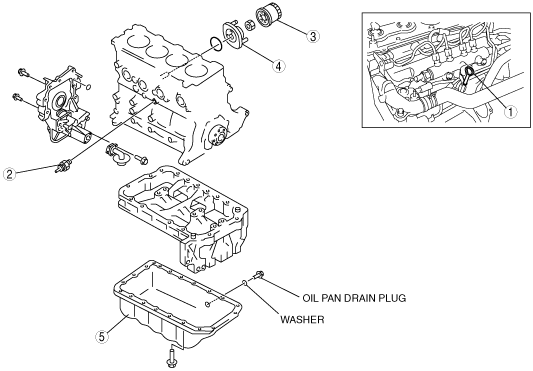

LUBRICATION SYSTEM LOCATION INDEX [MZR-CD (RF Turbo)]

id0111f1800100

am3zzw00004435

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [MZR-CD (RF Turbo)].) (See ENGINE OIL REPLACEMENT [MZR-CD (RF Turbo)].)
2	Oil pressure switch (See OIL PRESSURE INSPECTION [MZR-CD (RF Turbo)].)
3	Oil filter (See OIL FILTER REPLACEMENT [MZR-CD (RF Turbo)].)
4	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
