VARIABLE SWIRL SOLENOID VALVE INSPECTION[L3 Turbo]

id0113b5801100

1.  Remove the variable swirl solenoid valve.

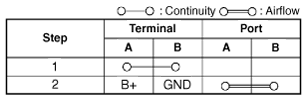

2.  Inspect the airflow between the ports under the following conditions.

am3uuw00000254

•  If not as specified, replace the variable swirl control solenoid valve.

•  If as specified, carry out the “Circuit Open/Short Inspection”.

acxuuw00000027

Circuit Open/Short Inspection

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION[L3 Turbo].)

2.  Inspect the following wiring harness for open or short circuit (continuity check).

acxuuw00000028

am3zzw00003610

acxuuw00000029

Open circuit

•  If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

―  Variable swirl solenoid valve terminal B and PCM terminal 2AS

―  Variable swirl solenoid valve terminal A and main relay terminal A

Short circuit

•  If there is continuity, there is a short circuit. Repair or replace the wiring harness.

―  Variable swirl solenoid valve terminal A and body ground

―  Variable swirl solenoid valve terminal B and power supply

―  Variable swirl solenoid valve terminal B and body ground
