FUEL FILTER REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)]

id0114c3804300

1.  Follow “BEFORE SERVICE PRECAUTION” before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION[MZ-CD 1.6 (Y6)].)

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

3.  Disconnect the negative battery cable.

4.  Remove the engine cover.

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

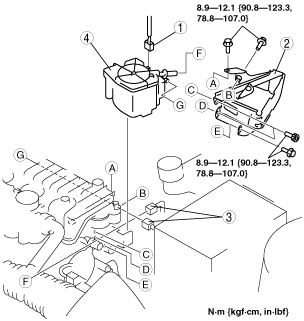

am3zzw00001481

1	Connector
2	Fuel filter protector
3	Quick release connector (Type E) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)
4	Fuel filter

7.  Inspect all related parts by performing “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION[MZ-CD 1.6 (Y6)].)
