FUEL SYSTEM LOCATION INDEX [MZR-CD (RF Turbo)]

id0114f1800100

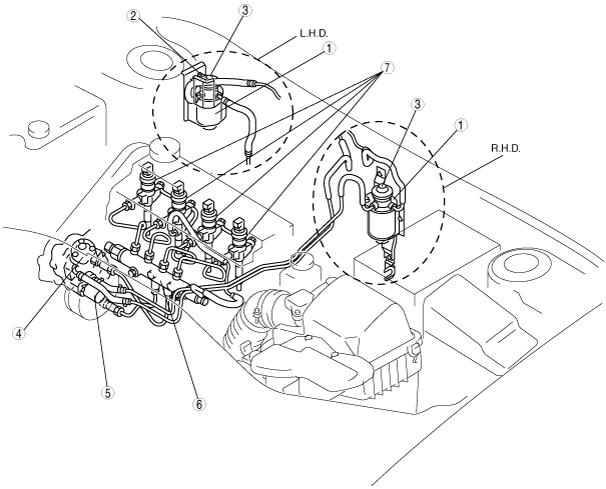

Engine room side

am3zzw00004122

1	Fuel filter (See FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)].)
2	Fuel warmer (Cold District Specification) (See FUEL WARMER INSPECTION [MZR-CD (RF Turbo)].)
3	Priming pump
4	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See SUPPLY PUMP INSPECTION [MZR-CD (RF Turbo)].)
5	Suction control valve (See SUCTION CONTROL VALVE INSPECTION [MZR-CD (RF Turbo)].)
6	Common rail (See COMMON RAIL INSPECTION [MZR-CD (RF Turbo)].)
7	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See FUEL INJECTOR INSPECTION [MZR-CD (RF Turbo)].)

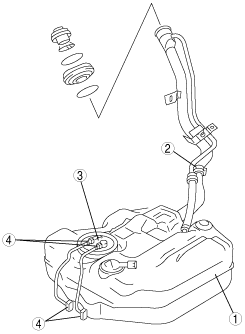

Fuel tank side

am3zzw00004266

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See FUEL TANK INSPECTION [MZR-CD (RF Turbo)].)
2	Nonreturn valve (See NONRETURN VALVE INSPECTION [MZR-CD (RF Turbo)].)
3	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [MZR-CD (RF-Turbo)].)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
