CHARCOAL CANISTER INSPECTION[L3 Turbo]

id0116b4800500

1.  Remove the tire (RR).

2.  Remove the mudguard (RR).

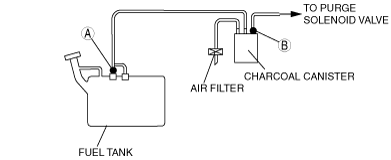

3.  Disconnect quick release connectors A and B shown in the figure from the underside of the vehicle.

am3zzw00003171

(1)  Spread the lower part of the retainer apart.

am3zzw00003174

(2)  Pull the retainer up.

(3)  Disconnect the evaporative hose.

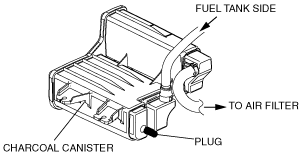

4.  Plug the air filter side and purge solenoid valve side of the charcoal canister.

am3zzw00003172

am3zzw00003485

5.  Inspect for air leakage when blowing air by mouth from the fuel tank side.

•  Replace the related parts if there is any air leak. (See CHARCOAL CANISTER REMOVAL/INSTALLATION[L3 Turbo].)
