EMISSION SYSTEM LOCATION INDEX[ZJ, ZY, Z6]

id0116c1803700

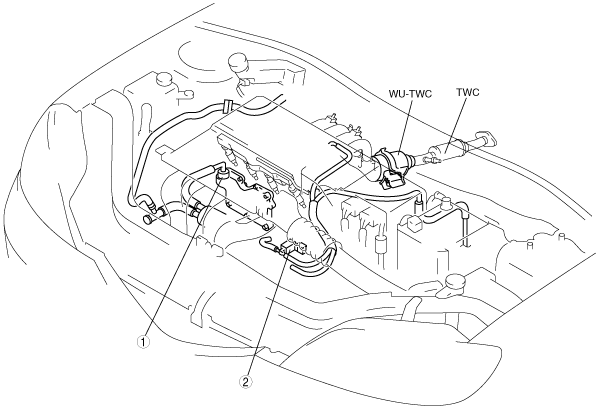

Engine Compartment Side (Without Throttle Valve Actuator)

am3zzn00000306

1	Positive crankcase ventilation (PCV) valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION[ZJ, ZY, Z6].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See PURGE SOLENOID VALVE INSPECTION[ZJ, ZY, Z6].)

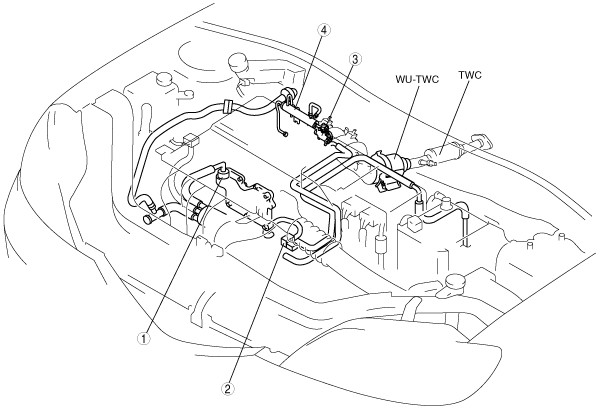

Engine Compartment Side (With Throttle Valve Actuator)

am3zzn00001394

1	Positive crankcase ventilation (PCV) valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION[ZJ, ZY, Z6].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See PURGE SOLENOID VALVE INSPECTION[ZJ, ZY, Z6].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See EGR VALVE INSPECTION[ZJ, ZY, Z6].)
4	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION[ZJ, ZY, Z6].)

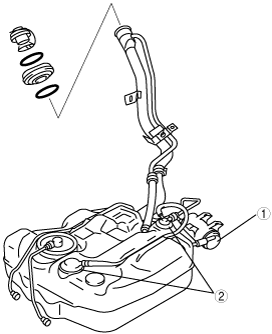

Fuel Tank Side

am3zzw00000538

1	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See CHARCOAL CANISTER INSPECTION[ZJ, ZY, Z6].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See ROLLOVER VALVE INSPECTION[ZJ, ZY, Z6].)
