GENERATOR REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)]

id0117c3800200

Warning

•  When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cables before performing the following operation.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

2.  Disconnect the negative battery cable.

3.  Remove the following parts.

(1)  Engine cover

(2)  Air pipe (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

(3)  Drive belt (See DRIVE BELT REPLACEMENT[MZ-CD 1.6 (Y6)].)

(4)  Drive belt tensioner (See TIMING BELT REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

4.  Remove the turbocharger insulator. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

5.  Disconnect the A/C compressor connector and oil pressure switch connector, and set the wiring harnesses out of the way.

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

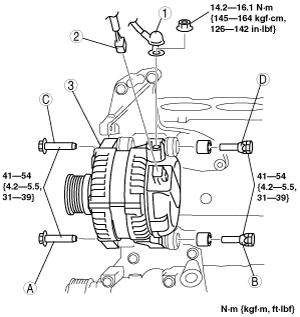

am3zzw00001547

1	B terminal
2	Generator connector
3	Generator (See Generator Installation Note.)

Generator Installation Note

1.  Match the generator fixing hole and engine side hole, then temporarily tighten the generator installation bolts in the order A, B, C, and D.

2.  Securely tighten the generator installation bolts in the order A, C, B, and D.
