CRANKSHAFT POSITION (CKP) SENSOR INSPECTION[ZJ, ZY, Z6]

id0140b1800500

Note

• Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See HOW TO USE THIS MANUAL.)

Visual inspection

1. Remove the CKP sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6].)

2. Verify that there are no metal shavings on the sensor.

3. Install the CKP sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6].)

Air Gap Inspection

1. Verify that the CKP sensor is securely installed.

2. Using a thickness gauge, measure the air gap between the plate projections at the back of crankshaft pulley and the CKP sensor.

am3zzw00001287

• If not within the specification, inspect the plate projections for cracks or bending.

― If not within the specification, replace the plate. (See FRONT OIL SEAL REPLACEMENT[ZJ, ZY, Z6].)

Air gap

0.5—1.5 mm {0.02—0.05 in}

Voltage inspection

1. Idle the engine.

Caution

• Water penetrating the connector will cause sensor malfunction. To prevent this, be careful not to damage the wiring harnesses or the waterproof connector so as to cause water penetration.

2. Measure the output voltage using a oscilloscope.

am3zzw00001288

• If not within the specification, replace the CKP sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6].)

• If the monitor item condition/specification (reference) is not within the specification, even though there is no malfunction, perform the “Circuit Open/Short Inspection”.

CKP sensor voltage

Terminal	Voltage (V)	Condition
A	B+	Under any condition
B	4.8 or more	High output*
B	0.8 or less	Low output*
C	0	Under any condition

* :Output voltage varies with camshaft rotation.

Circuit Open/Short Inspection (Without Throttle Valve Actuator)

1. Remove the PCM connector cover.

2. Disconnect the PCM connector. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[ZJ, ZY, Z6].)

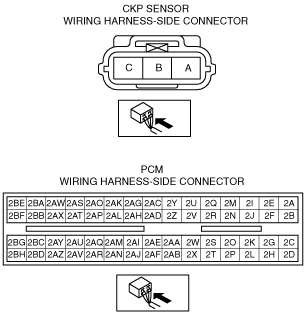

3. Inspect the following wiring harness for open or short circuit (continuity check).

am3zzw00001289

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

― CKP sensor terminal A and PCM terminal 2T

― CKP sensor terminal B and PCM terminal 2P

― CKP sensor terminal C and PCM terminal 2BF

Short circuit

• If there is continuity, there is a short circuit. Repair or replace the wiring harness.

― CKP sensor terminal A and body ground

― CKP sensor terminal B and power supply

― CKP sensor terminal B and body ground

― CKP sensor terminal C and power supply

Circuit Open/Short Inspection (With Throttle Valve Actuator)
