CONTROL SYSTEM LOCATION INDEX [MZ-CD 1.6 (Y6)]

id0140b2804100

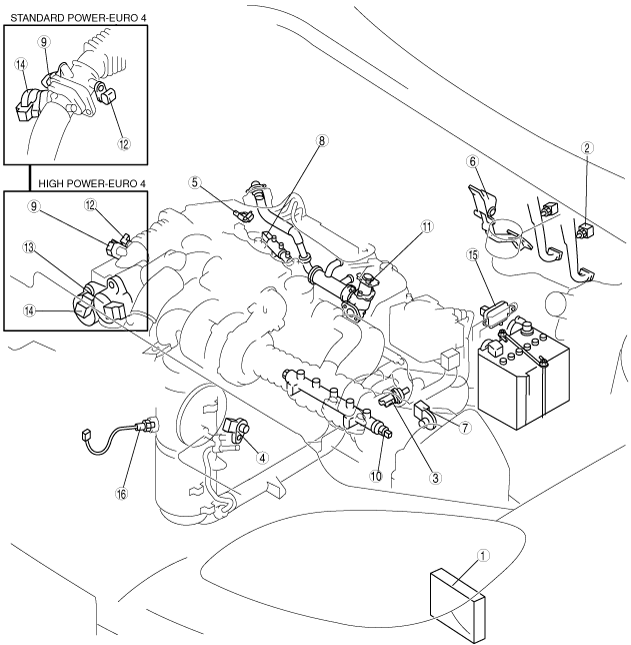

Engine Compartment Side

am3zzw00001025

1	PCM (Built-in BARO sensor) (See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See PCM INSPECTION [MZ-CD 1.6 (Y6)].) (See PCM CONFIGURATION [MZ-CD 1.6 (Y6)].)
2	CPP switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZ-CD 1.6 (Y6)].)
3	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
4	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
5	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
6	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
7	MAF sensor/IAT sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
8	Fuel temperature sensor (See FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See FUEL TEMPERATURE SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
9	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
10	Fuel pressure sensor (See FUEL PRESSURE SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
11	EGR valve position sensor (See EGR VALVE POSITION SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
12	IAT sensor No.2 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
13	Air bypass valve position sensor (High power-Euro 4) (See AIR BYPASS VALVE POSITION SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
14	Intake throttle valve position sensor (See INTAKE THROTTLE VALVE POSITION SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
15	Diesel particulate filter differential pressure sensor (High power-Euro 4) (See DIESEL PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See DIESEL PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
16	Catalyst exhaust gas temperature sensor (High power-Euro 4) (See CATALYST EXHAUST GAS TEMPERATURE SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)

Fuel Tank Side (High Power-Euro 4)

am3zzw00001026

1	Fuel additive control module (See FUEL ADDITIVE CONTROL MODULE REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See FUEL ADDITIVE CONTROL MODULE INSPECTION [MZ-CD 1.6 (Y6)].) (See FUEL ADDITIVE CONTROL MODULE CONFIGURATION [MZ-CD 1.6 (Y6)].)
2	Fuel-filler switch (See FUEL-FILLER SWITCH REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See FUEL-FILLER SWITCH INSPECTION [MZ-CD 1.6 (Y6)].)
3	Fuel additive level sensor/fuel additive pump unit (See FUEL ADDITIVE LEVEL SENSOR INSPECTION [MZ-CD 1.6 (Y6)].) (See FUEL ADDITIVE PUMP UNIT INSPECTION [MZ-CD 1.6 (Y6)].)
